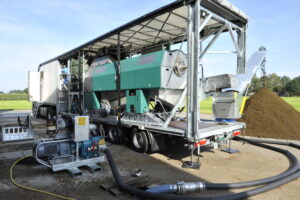

Mobile Manure Separator
Slootsmid produces both stationary decanter-based systems and mobile decanter solutions. The mobile manure separator can be built into a shipping container or mounted permanently on a trailer. These systems are equipped with a generator, intake and discharge pumps, a cutting filter, and a discharge auger to be self-sufficent and operate fully autonomously. The components are carefully coordinated to ensure optimal utilization of the decanter’s capacity. In addition, platforms and lifting aids are engineered as part of the structure, and the control room is equipped with positive pressure and climate control. Due to the application of proven techniques and solid construction, the manure separators offer high operational reliability and long maintenance intervals. All systems are delivered fully CE-certified.
Benefits of Manure Separation with a Slootsmid (Mobile) Decanter
- High separation efficiency
- Available in various capacities
- Available in stationary or mobile configurations
- Easy to operate, PLC-controlled
- Proven solutions in manure treatment and processing
- Customizable options for a solution tailored to your needs
Modular Design with Numerous Options
Slootsmid manure separators are modular in design and offer room for additional features. Clean water storage and hydraulics can be integrated into the system, and optional equipment like compressed air or a pressure washer can be added. A polymer dosing system can also be included to further enhance separation efficiency.
References

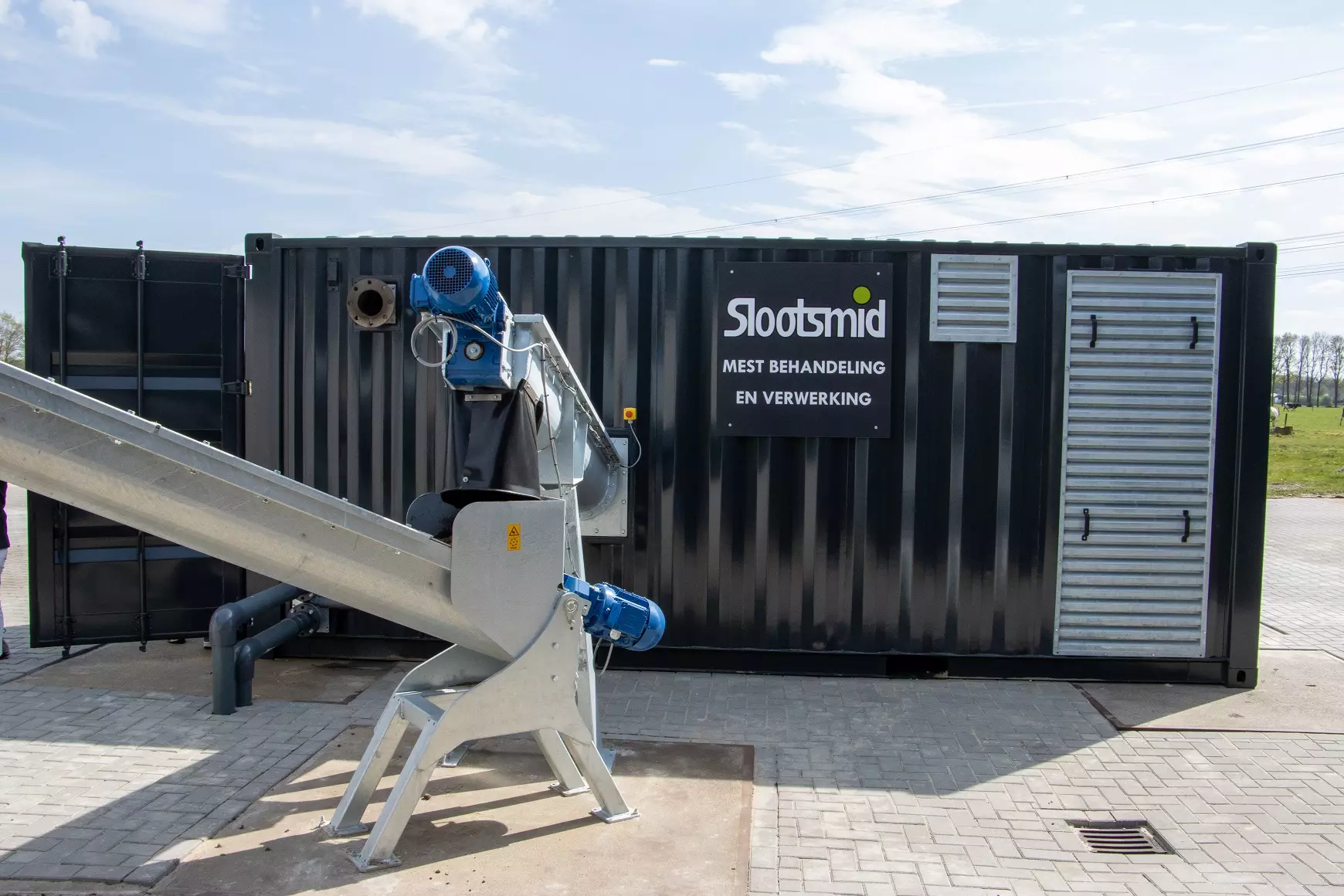

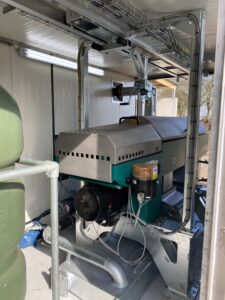

GEA Pro 3200 in a 20ft Container

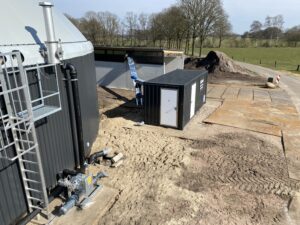

This stationary system is installed at an AD plant to separate digestate. The system is housed in a 20ft shipping container and includes:
- 2 compartments
- Control room with positive pressure and climate control
- Mobile feed pump with Slootsmid cutting filter
- Water tank
- Discharge pump and auger
- Integrated hoist for maintenance purposes

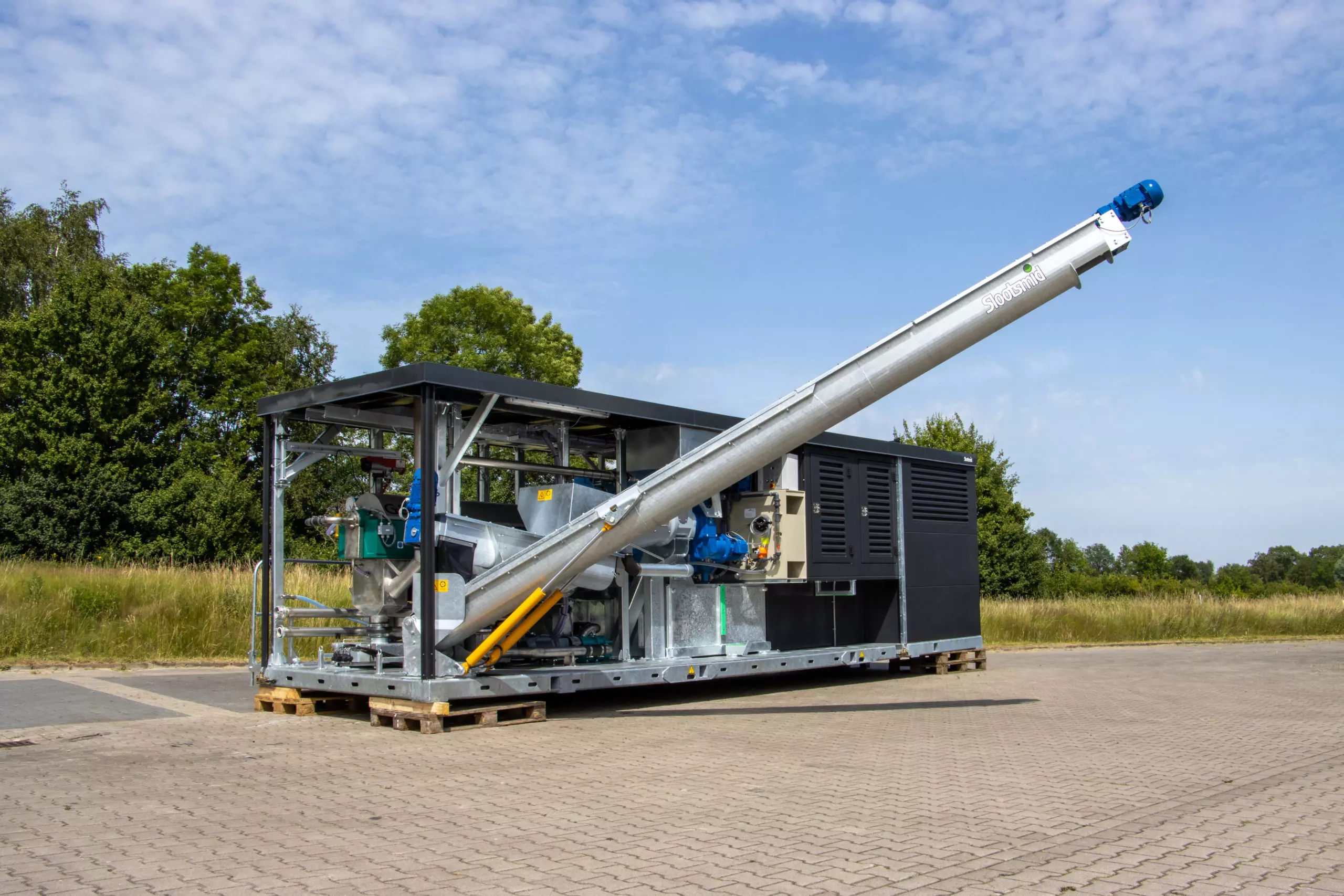

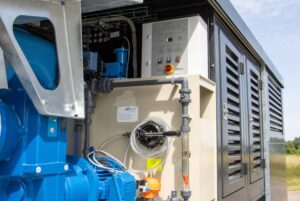

GEA Pro 3200 in a 30ft Container
- Three compartments
- 110 kVA generator

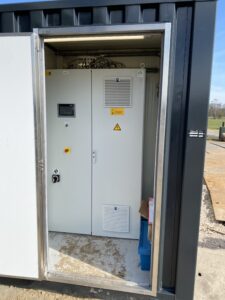

- Stainless steel control room with positive pressure and air conditioning
- Mobile feed pump and Slootsmid cutting filter
- 6-meter discharge auger, rotatable 180 degrees
- Alltech polymer dosing system
- FAN screw press
- Integrated hoist for maintenance purposes
This container can be easily mounted on any chassis with a twist-lock system.

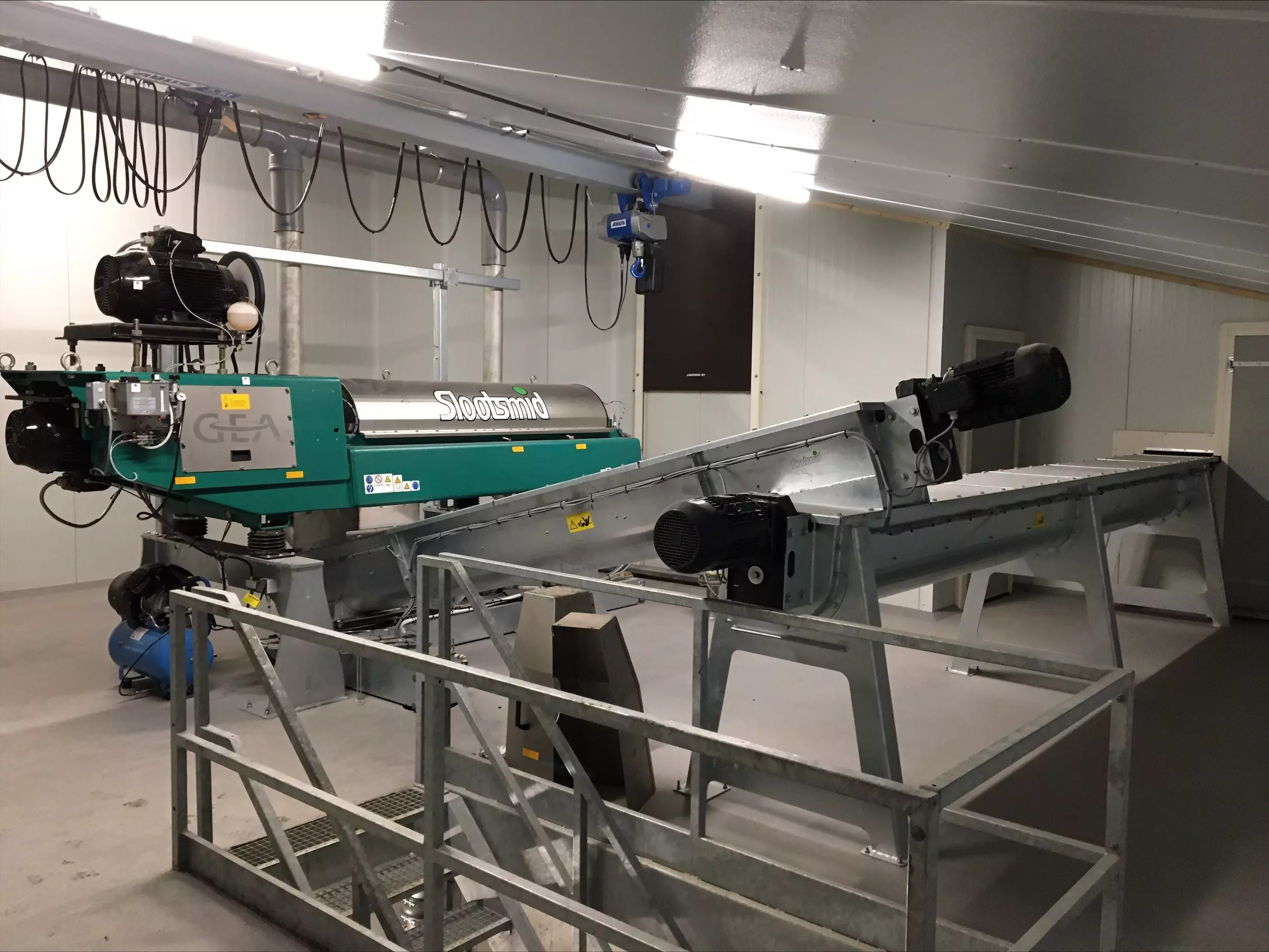

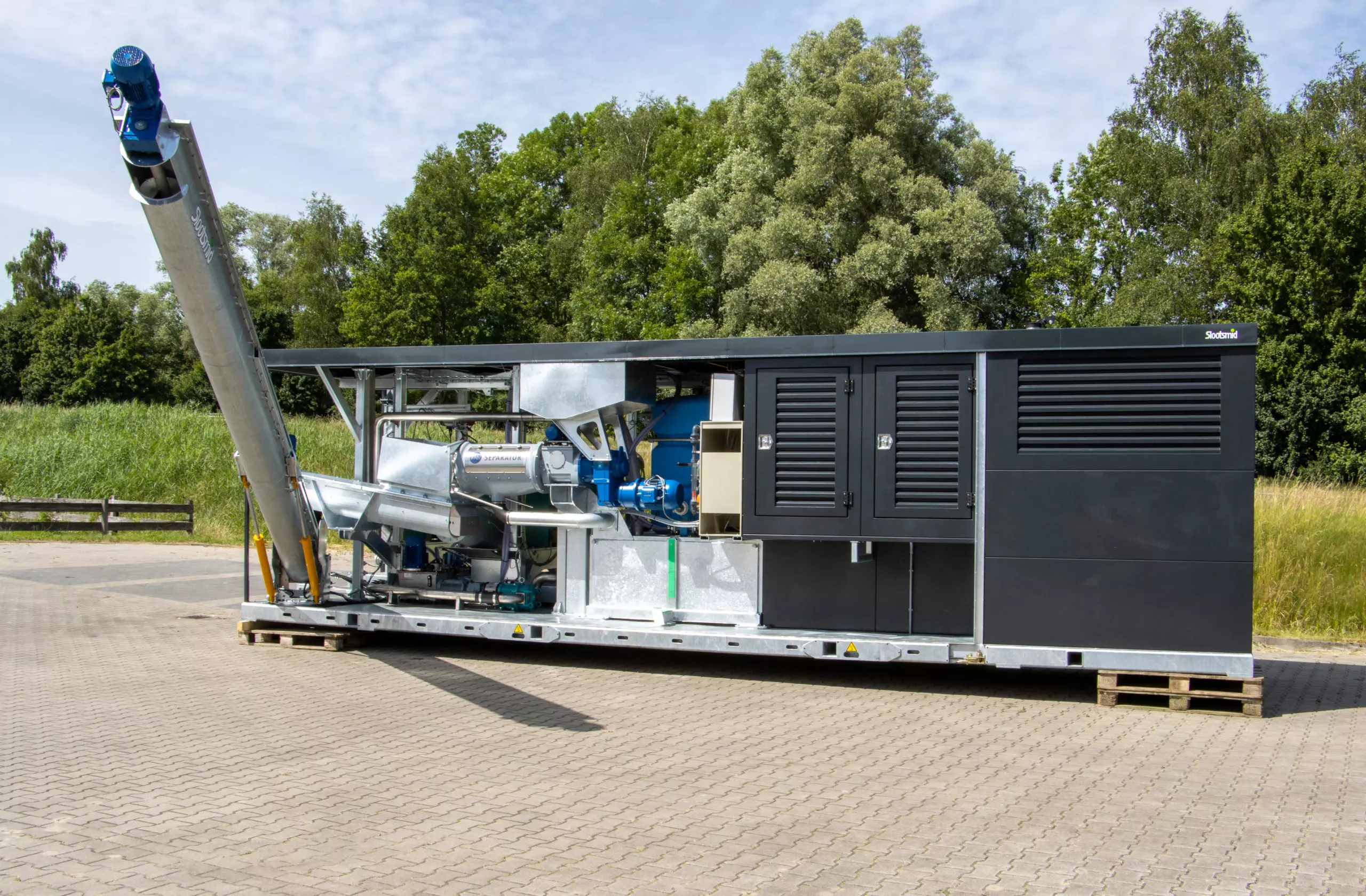

GEA Prime 5000
- Stationary system
- Dual feed pump with Slootsmid cutting filter
- Discharge pump with flow meter
- 12-meter discharge auger with multiple discharge points

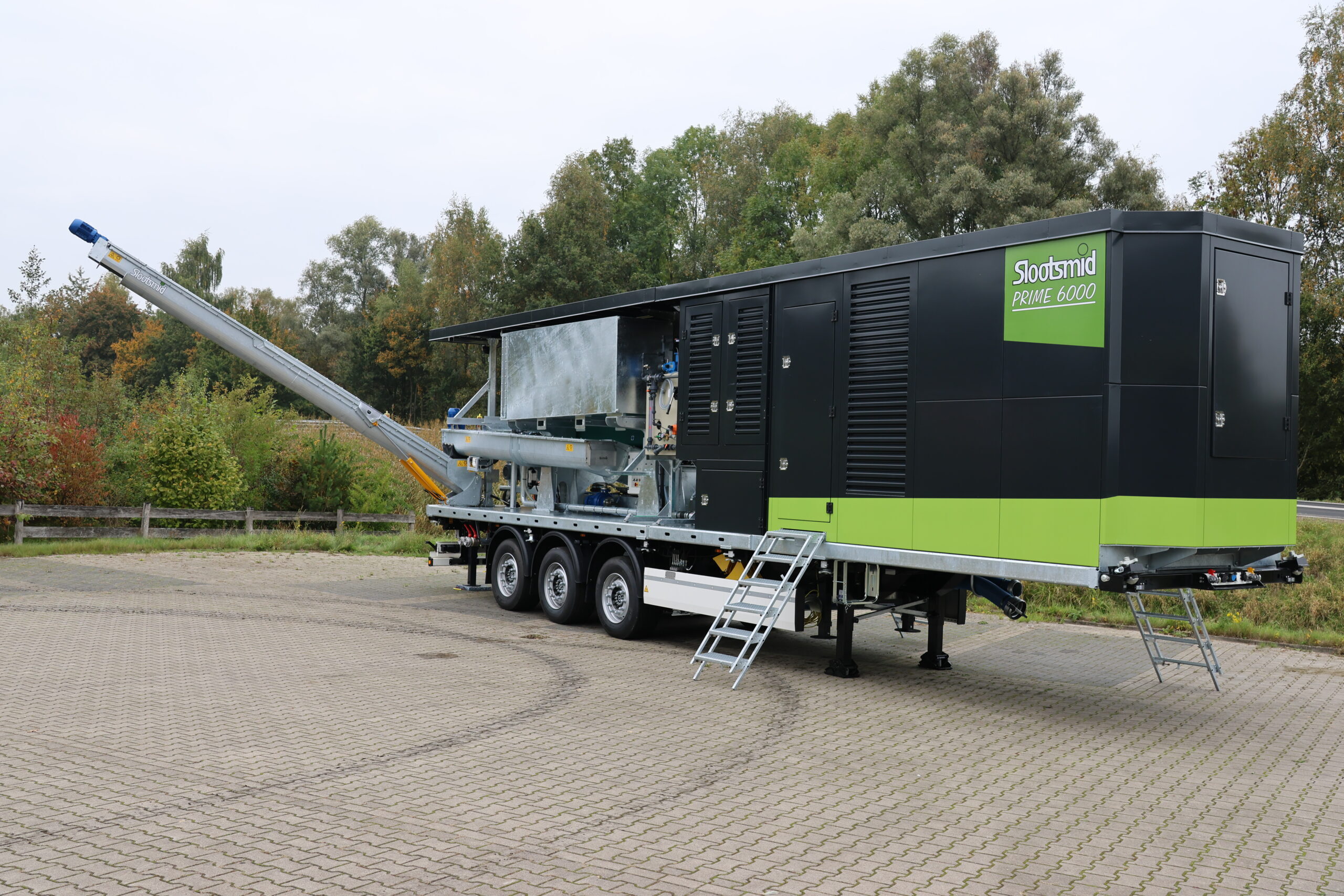

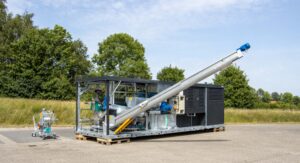

Prime 6000
This mobile decanter is designed for maximum efficiency and flexibility. The machine is built on a robust frame with a twistlock connection and equipped with a Stage V generator set, ensuring compliance with the strictest emission standards. The integrated polymer dosing system provides precise dosing, enabling optimal separation of solid and liquid manure streams.
- GEA Prime decanter

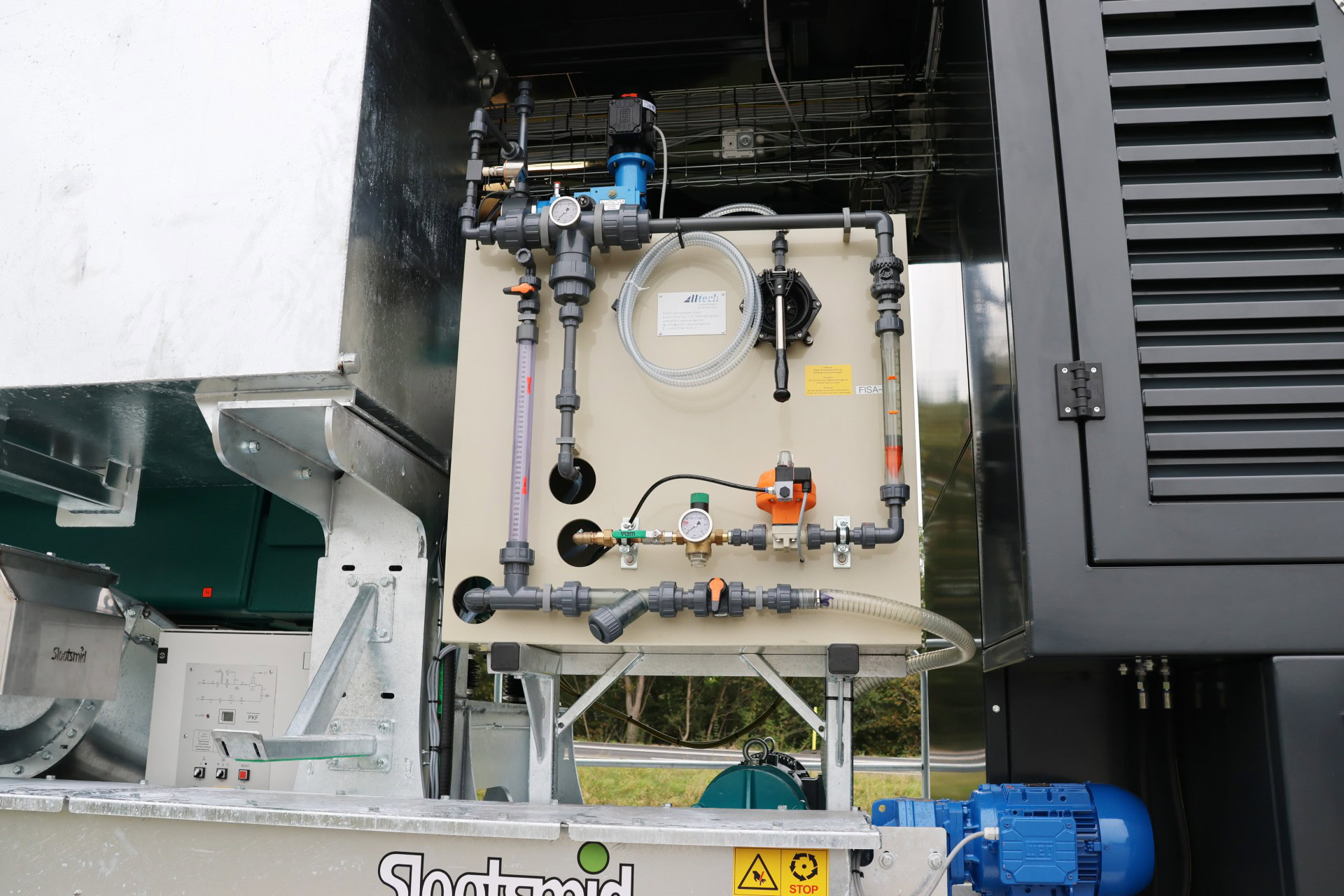

- Polymer dosing system
- NIR sensors

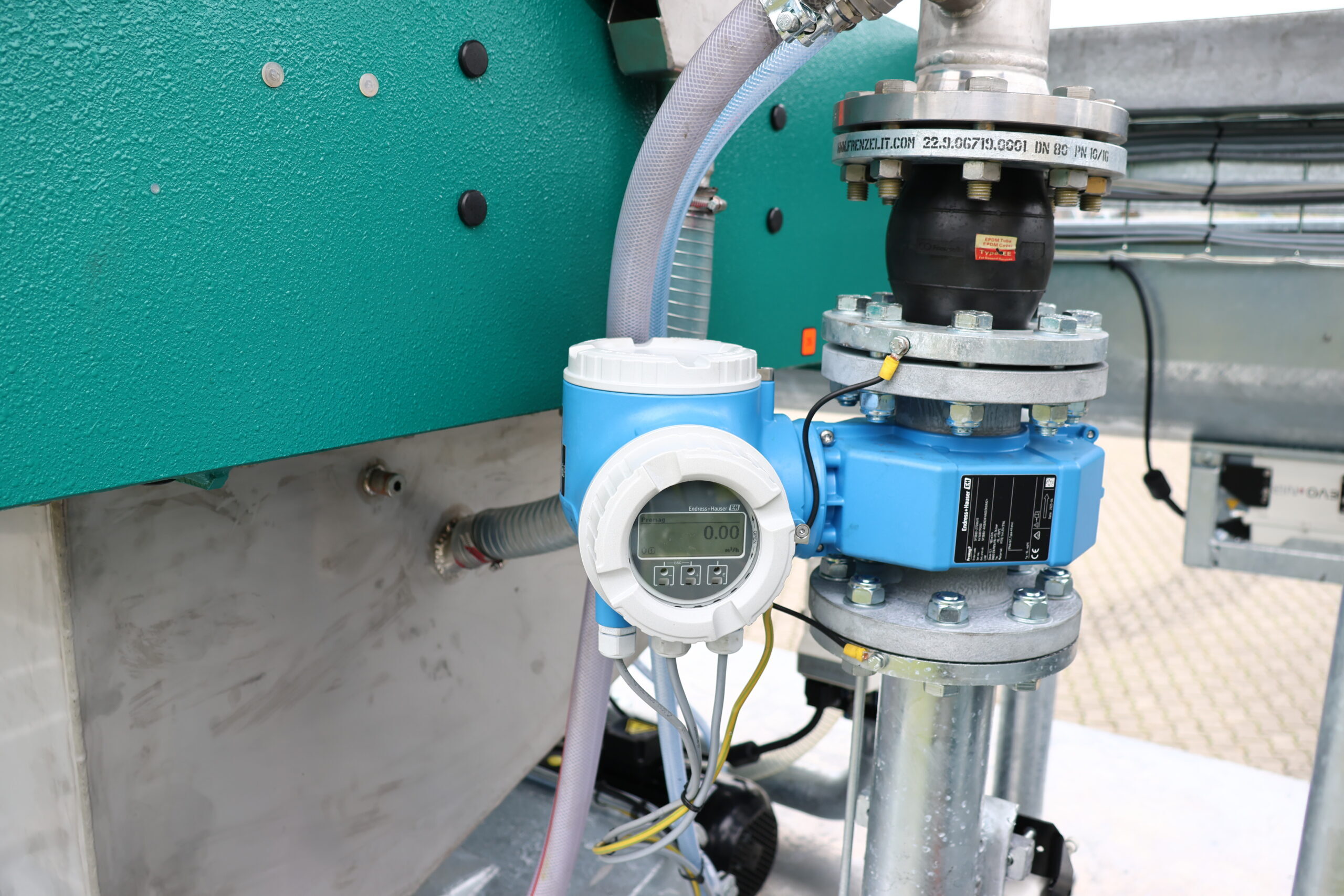

- Flow meter
- Remote-controlled HMI
- Automatic discharge screw adjustment
- Camera system
- Mobile feed pump with cutting filter
This mobile unit is quick to deploy, easy to transport, and designed for intensive daily use.

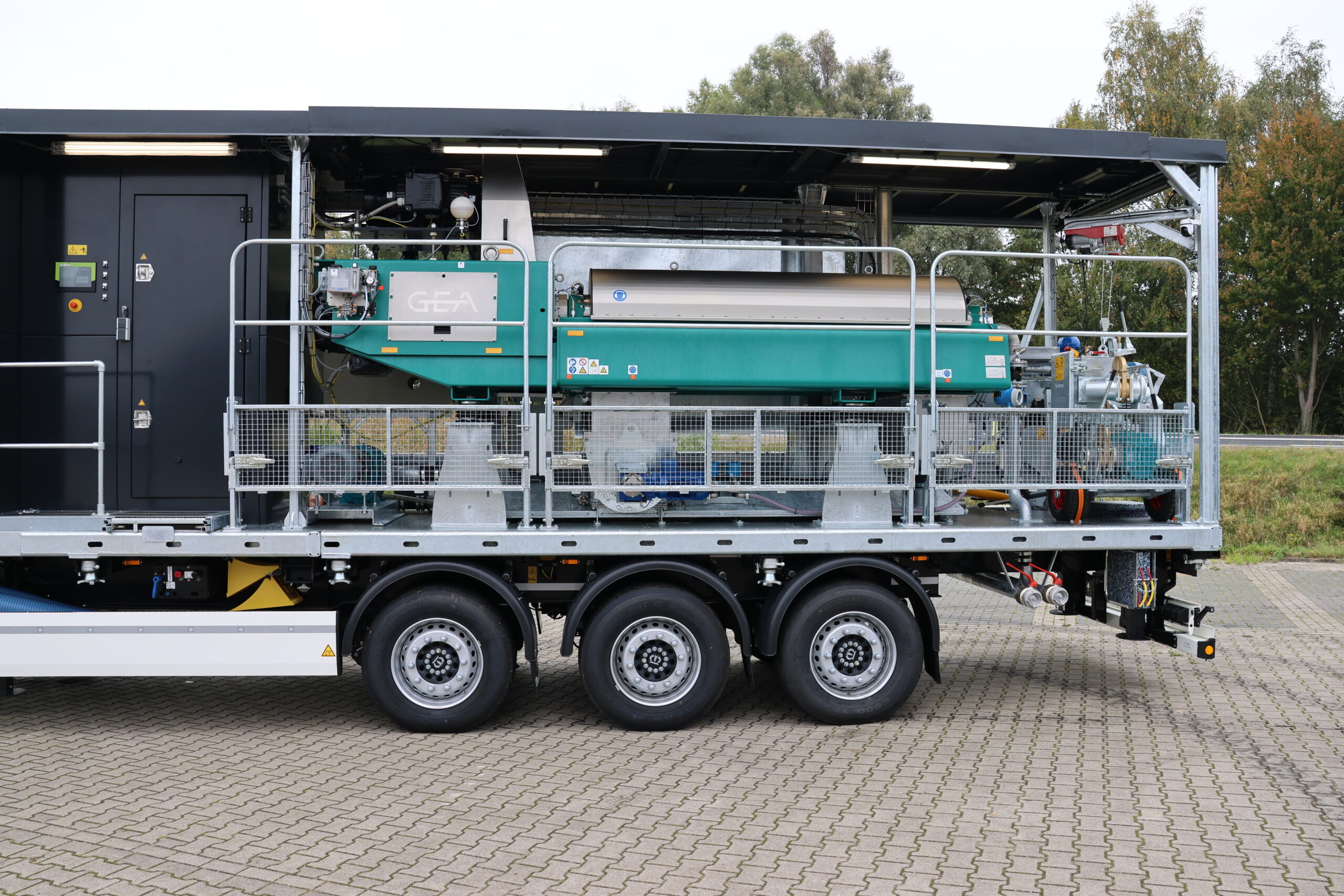

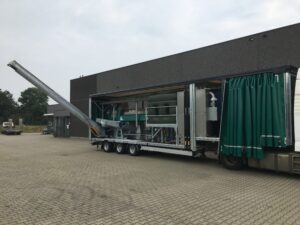

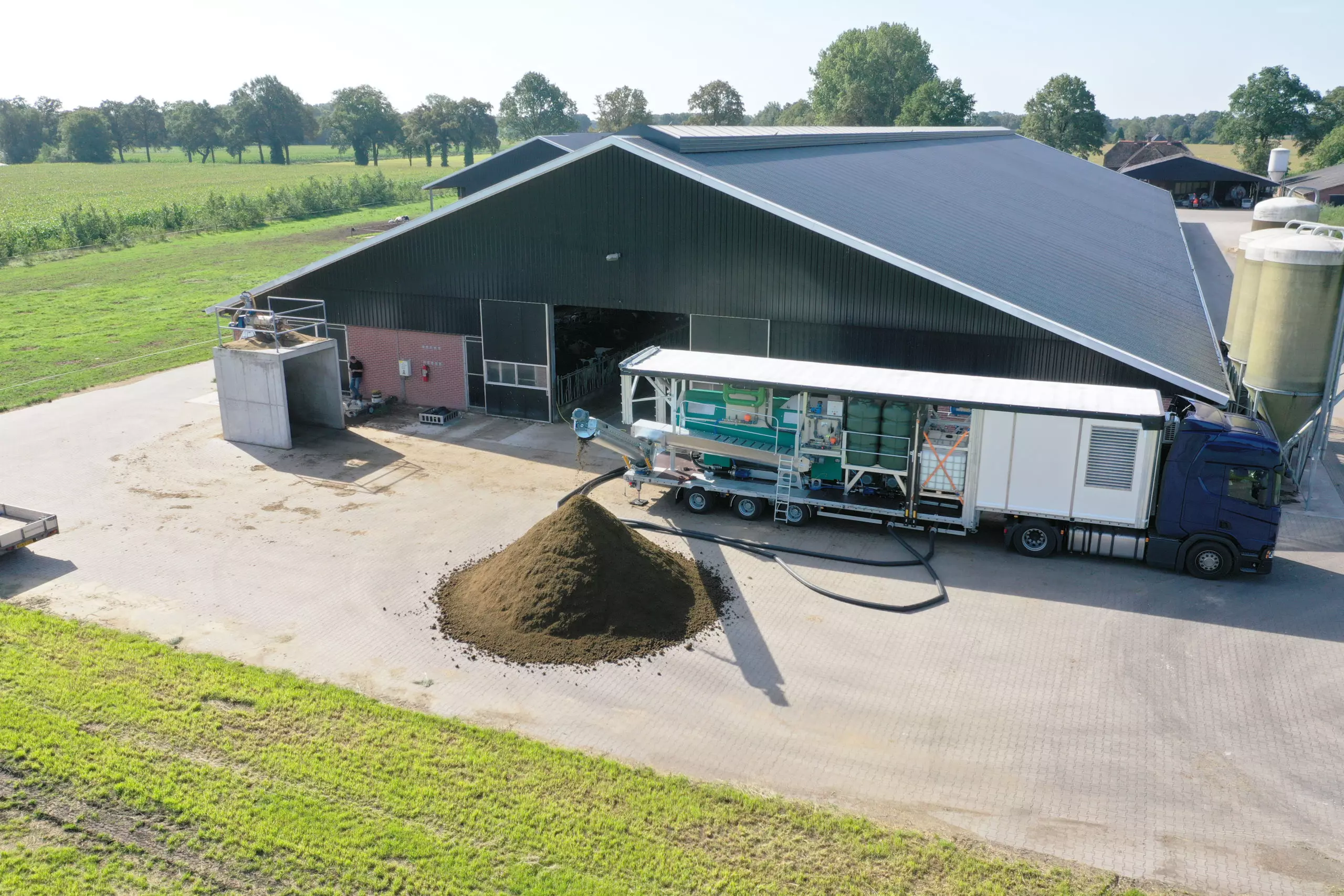

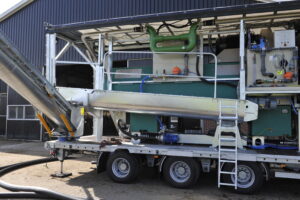

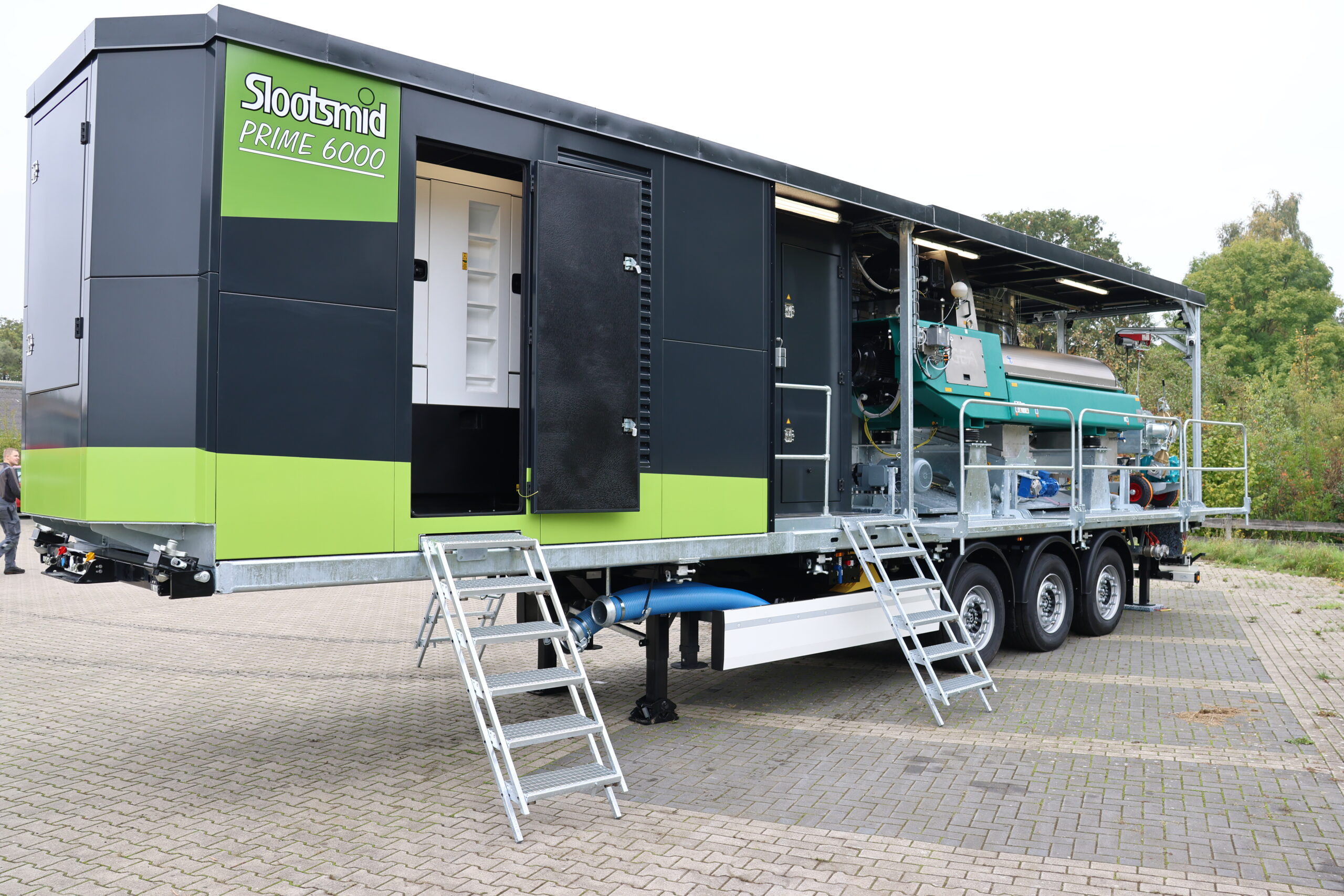

GEA Prime 6000 with Trailer
This highly complete mobile decanter was custom-built and delivered to a German manure processor. The power supply is provided by a 220KVA SDMO Stage V diesel generator with an extra-large tank, and the entire system can also be connected to mains power for operation without the generator.
- Galvanized 13-meter trailer
- 250 kVA Stage V generator
- Stainless steel control room with positive pressure and air conditioning
- Mobile feed pump with Slootsmid cutting filter
- 7-meter discharge auger, rotatable 180 degrees

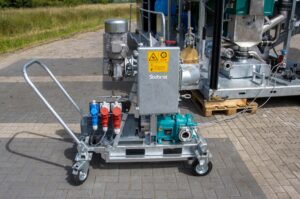

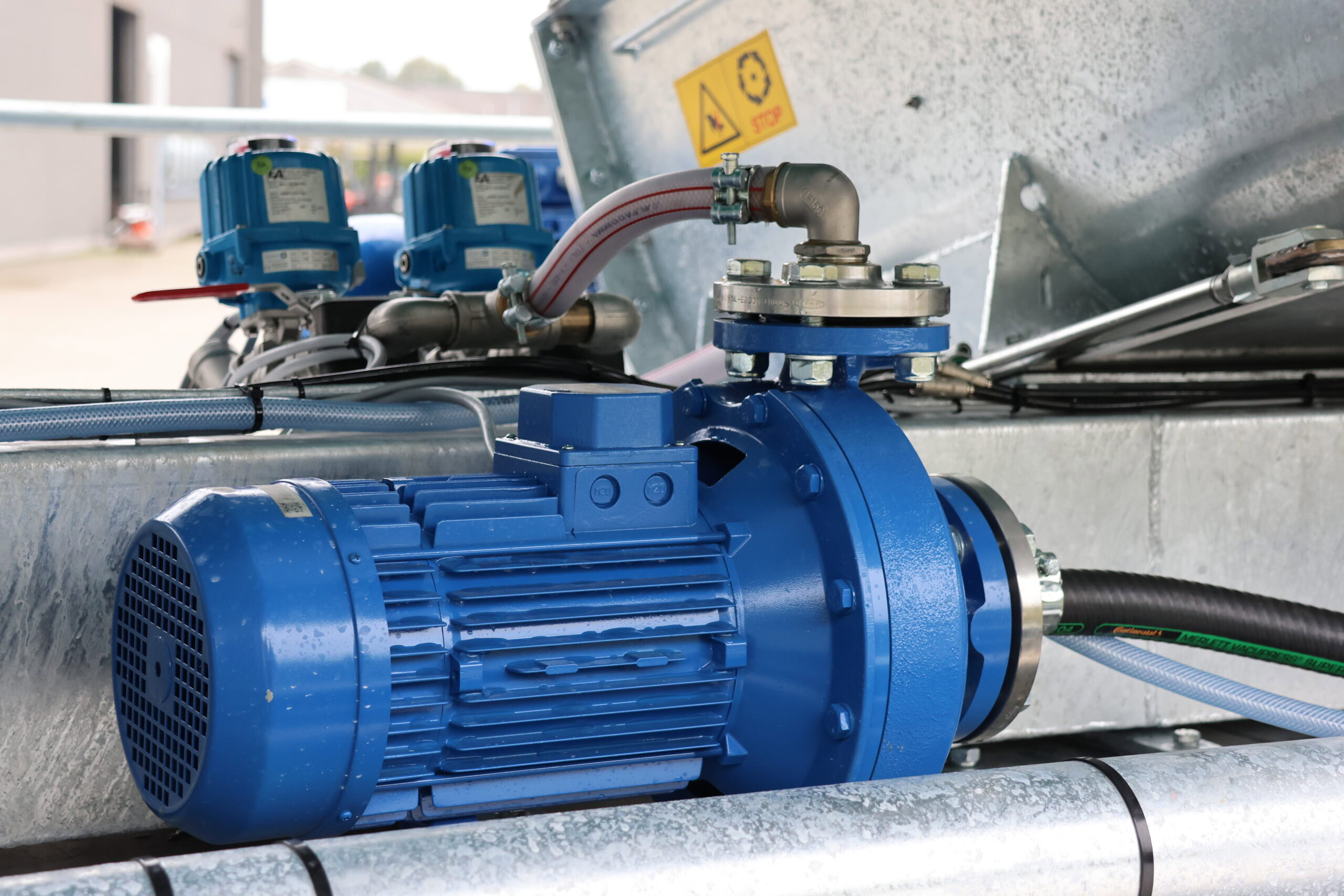

An extremely well-conditioned control room with a positive pressure system ensures the longevity of the electronics. The entire system can be controlled remotely in real-time via mobile phone, PC, or tablet. The decanter is powered by a Slootsmid mobile pump unit, equipped with a Börger PL300 pump and a Slootsmid SF6E macerator, allowing the feed pump and machine to be placed up to 50 meters apart.

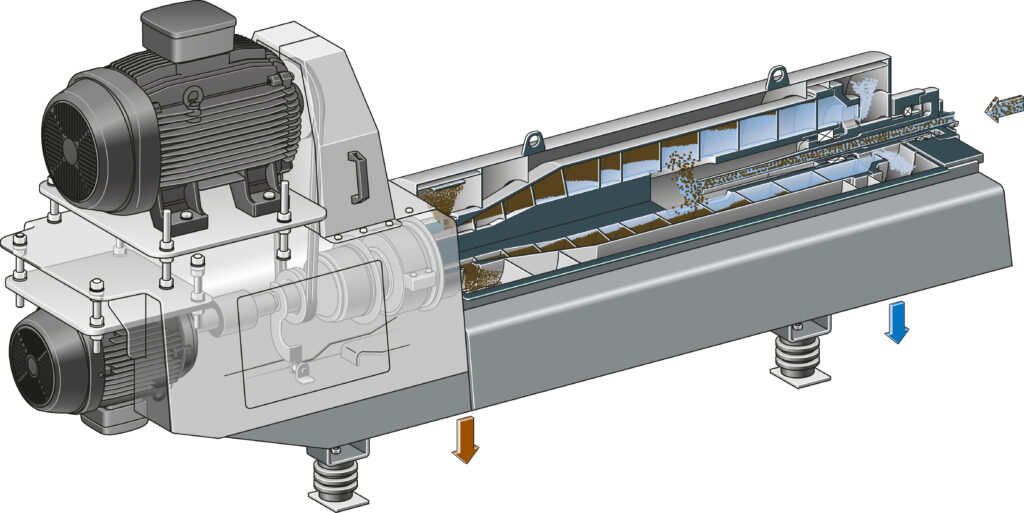

With the GEA CF6000 decanter, the manure is centrifuged into solid and liquid fractions using high G-forces. The liquid fraction is discharged via a Börger CL390 pump, and the solid fraction is removed by a powerful Slootsmid auger system. This system consists of three discharge augers, the last of which is a 7-meter auger that rotates 180 degrees and can be adjusted in height, with a discharge height of approximately 4.5 meters. The foundation of this system is a fully galvanized H&W 3-axle trailer, equipped with six stabilization points, hose supports, and a storage box under the loading floor. Along the entire length of the trailer, a foldable walkway with stairs and railing is installed.
Additionally, the system comes with various options, including a 3,000-liter clean water tank with rinse pump and pressure washer. The frame is smartly designed to accommodate an extra IBC tank on the system. A hydraulic unit, compressor, and loading ramp with winch make this system highly complete. With an additional mobile Slootsmid pump unit, the system’s capacity can be fully utilized.

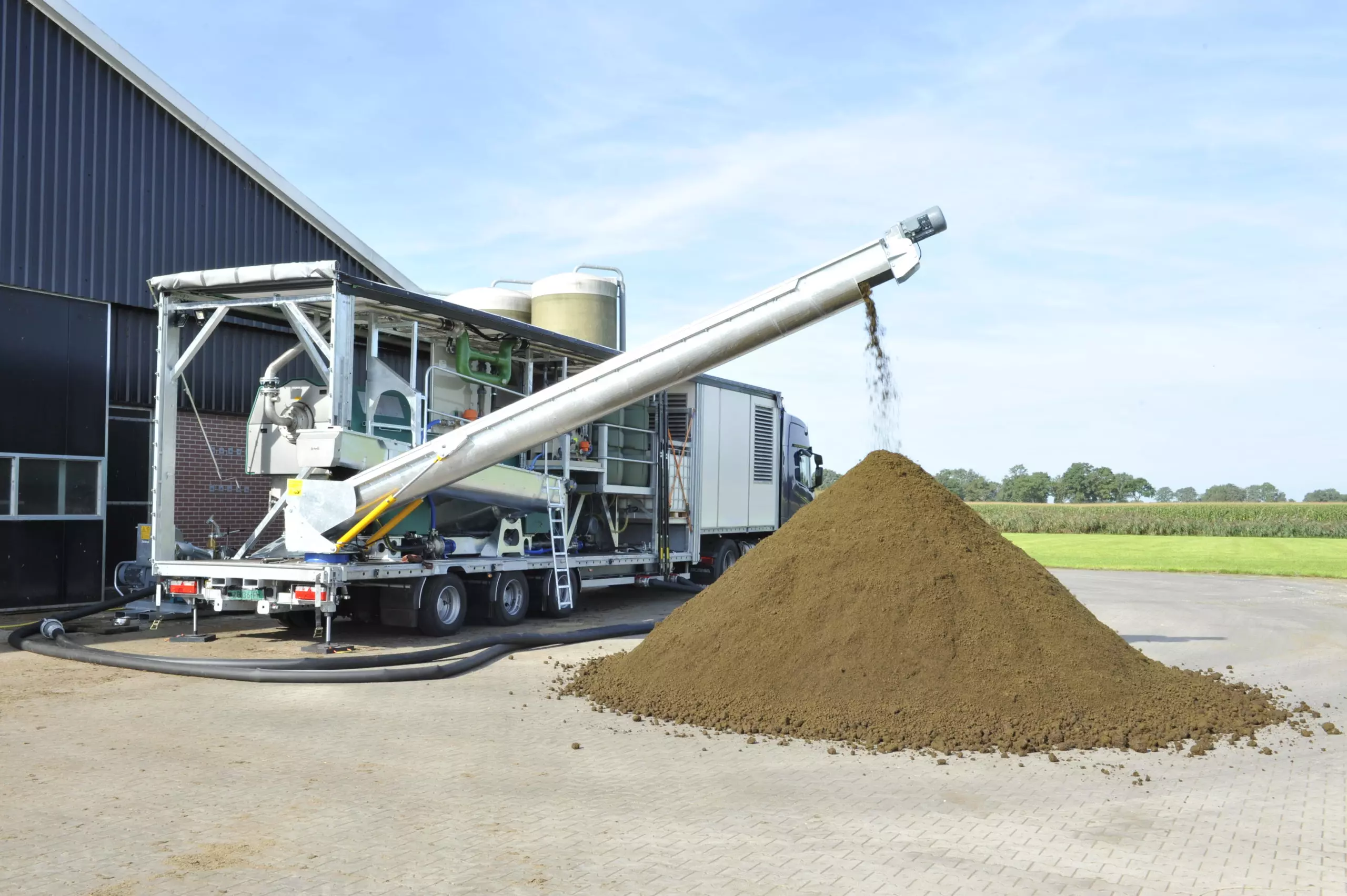

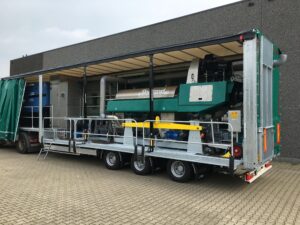

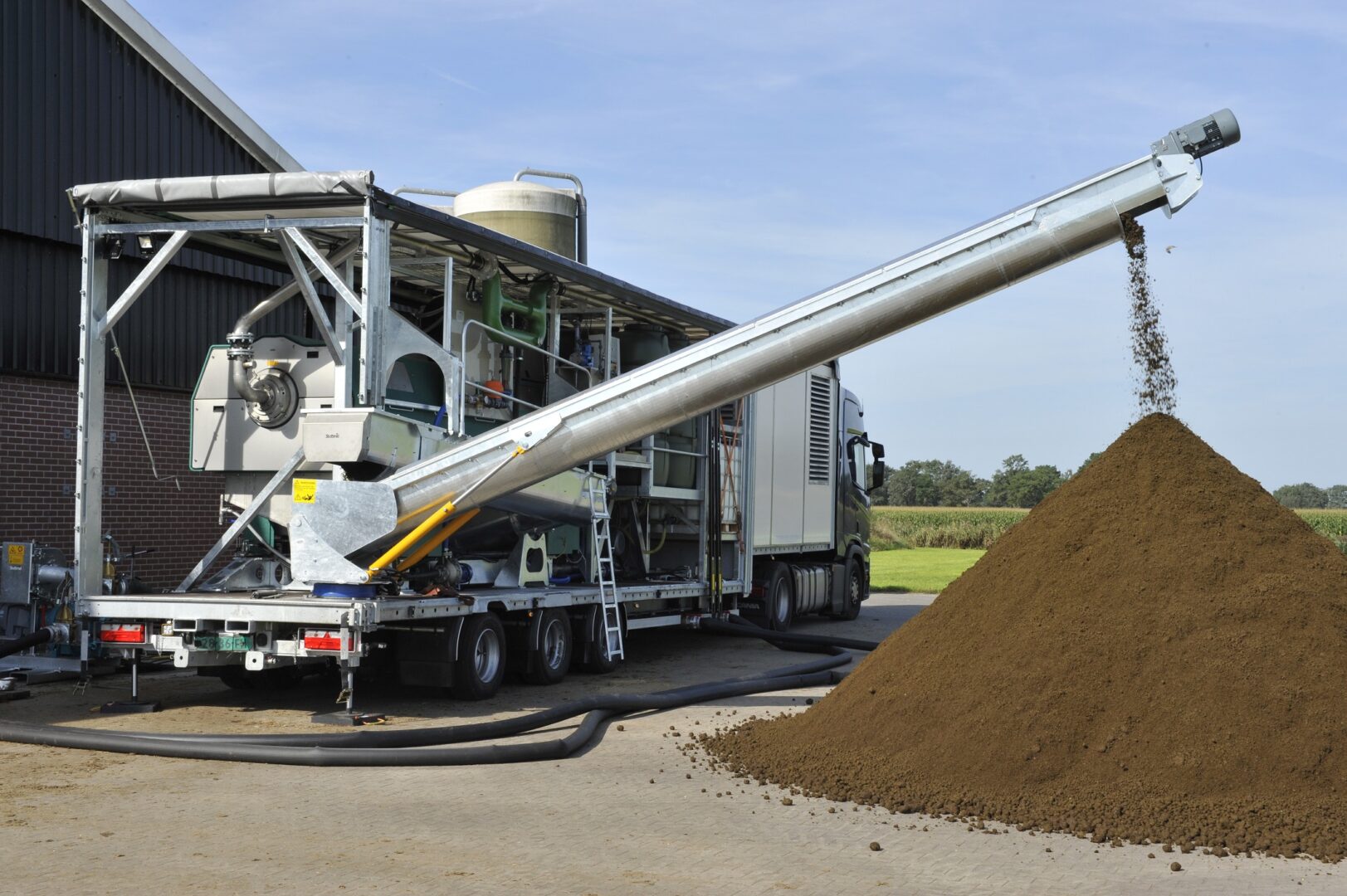

GEA UCD 755 with Trailer
This system is equipped with a GEA UCD 755 Decanter. It features a 440 kVA generator with an extra-large diesel tank for long autonomous operation. A 6 m³ water tank is also installed for rinsing and cleaning, along with a conditioned control room. This system also includes a mobile pump unit with a Börger FL518 feed pump and a Slootsmid SF6E electric macerator, which can be placed up to 50 meters from the machine.
Additional features include a complete polymer system with Deskins Rapidfloc, a special frame with four IBC tanks for polymer storage, and an extra Börger FL 518 pump for dilution, which regulates the feed based on dry matter content and optimizes polymer usage. The decanter is equipped with various storage options for hoses and couplings, a high-pressure cleaner, a Börger FL518 discharge pump for the liquid fraction, and high-capacity Slootsmid discharge augers for the solid fraction. The entire system is mounted on a specially designed, fully galvanized chassis.
Feel free to contact us for more information and to discuss available options.
