Smart construction
The SB Arable Injector Profi features a smart, robust, and durable construction with a relatively low overall weight. The fully galvanized frame provides excellent protection against the demanding conditions in which the machine is used.

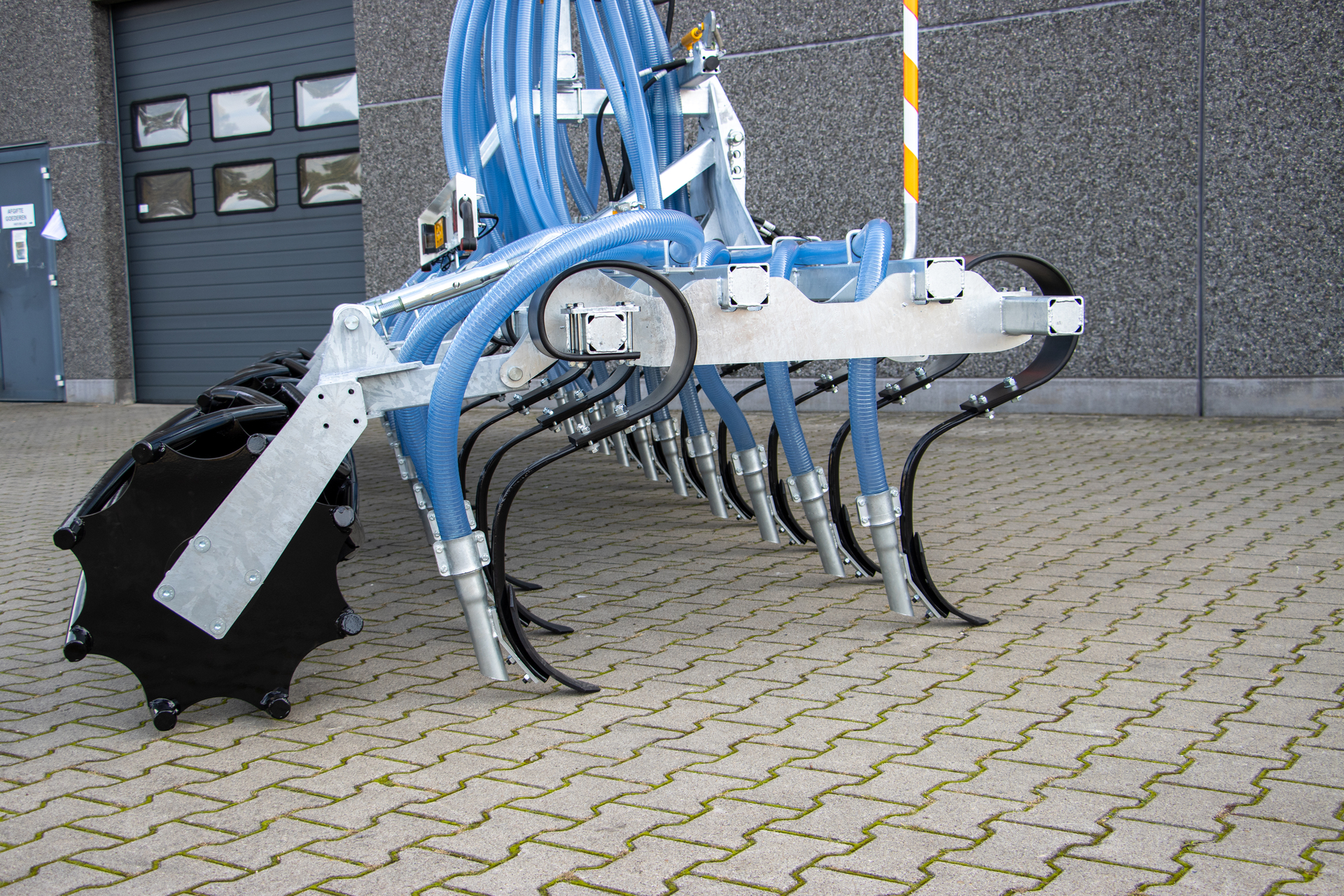

Two or four height-adjustable support wheels ensure the correct working depth at all times. Thanks to a generous flow opening of 90 cm between the front and rear tine rows, crop residue build-up is effectively prevented. The Profi comes standard with heavy-duty spring tines but can also be supplied with rigid tines for specific applications.
Special outlets
The SB Profi is renowned for its precise slurry distribution and low-emission application, supported by its accurately adjustable working depth. The special injection tines and spacious frame guarantee optimal slurry flow, even under heavier field conditions.
As standard, the Profi is equipped with a Slootsmid crossbar distributor, which ensures refined distribution and prevents crop growth variations. The tines have a spacing of 25 cm, or optionally 30 cm, and are arranged in two rows for uniform and efficient application.
Excellent distribution

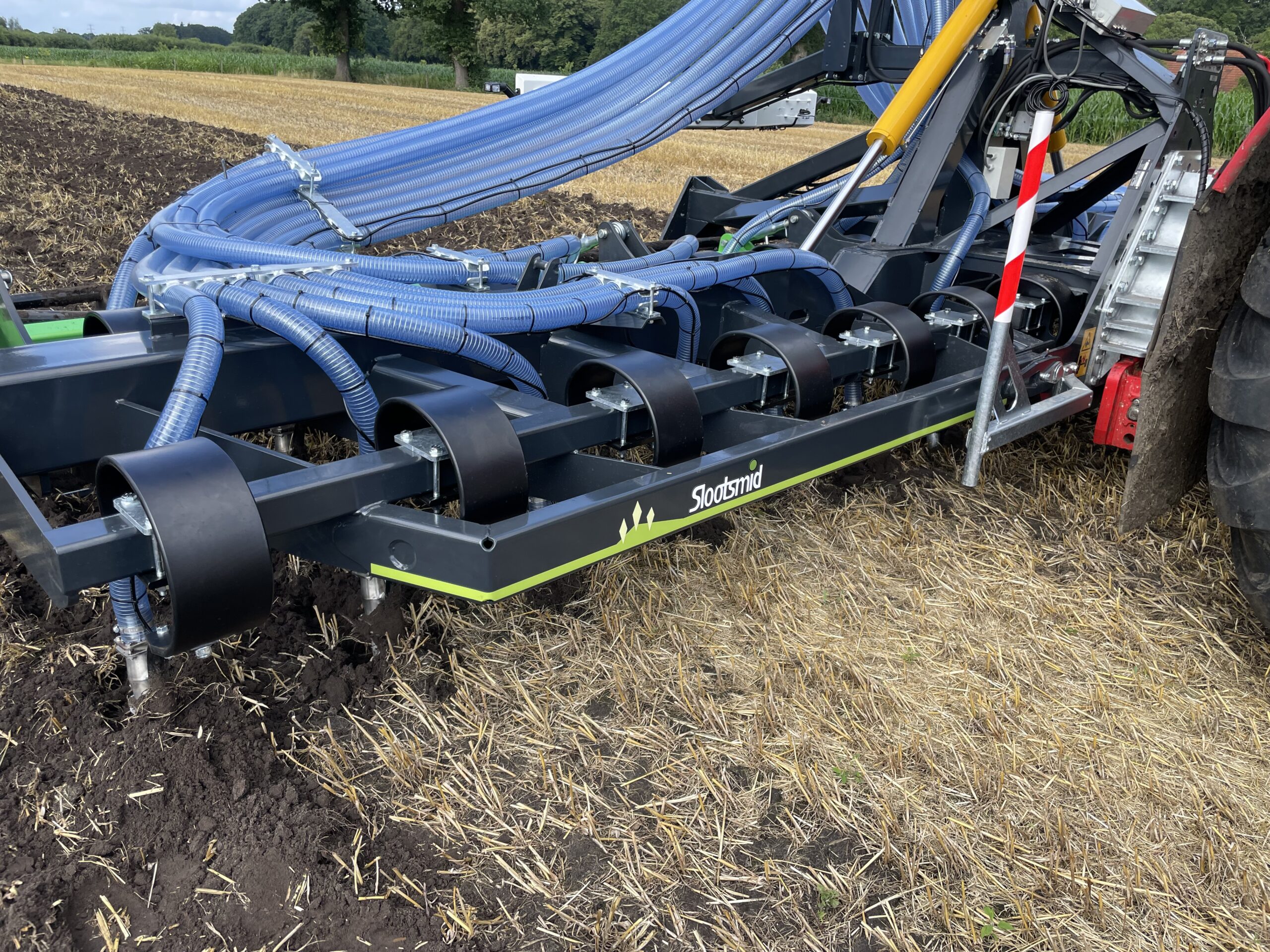

The Slootsmid distributor is mounted in a high position, ensuring precise and optimal distribution across the entire working width. In combination with the unique continuous hoses with steel spiral and an internal diameter of 50 mm, this design guarantees perfect flow and prevents blockages. The SB Profi is supplied as standard with a crossbar distributor, but different types of distributors can also be installed. Optionally, the injector can be equipped with section control using pneumatic shut-off valves.
Universal hitch
The SB Profi is equipped with a universal three-point hitch, making it easy to mount behind almost any brand and type of slurry tank. This coupling makes the machine highly versatile and allows it to be used not only with slurry tanks but also in combination with a drag hose system or even as a cultivator, adding extra flexibility in operation.
Injector options
The SB Profi can be fitted with a drag shoe and a towing hitch with clevis coupling. If desired, section control can be implemented by installing pneumatic shut-off valves on the tines. It is also possible to mount trailing tines, a knife harrow, a spring tine harrow, or a bar roller behind the injector. Instead of a crossbar distributor, a cutting distributor can also be installed.
