Product description
Robust Construction

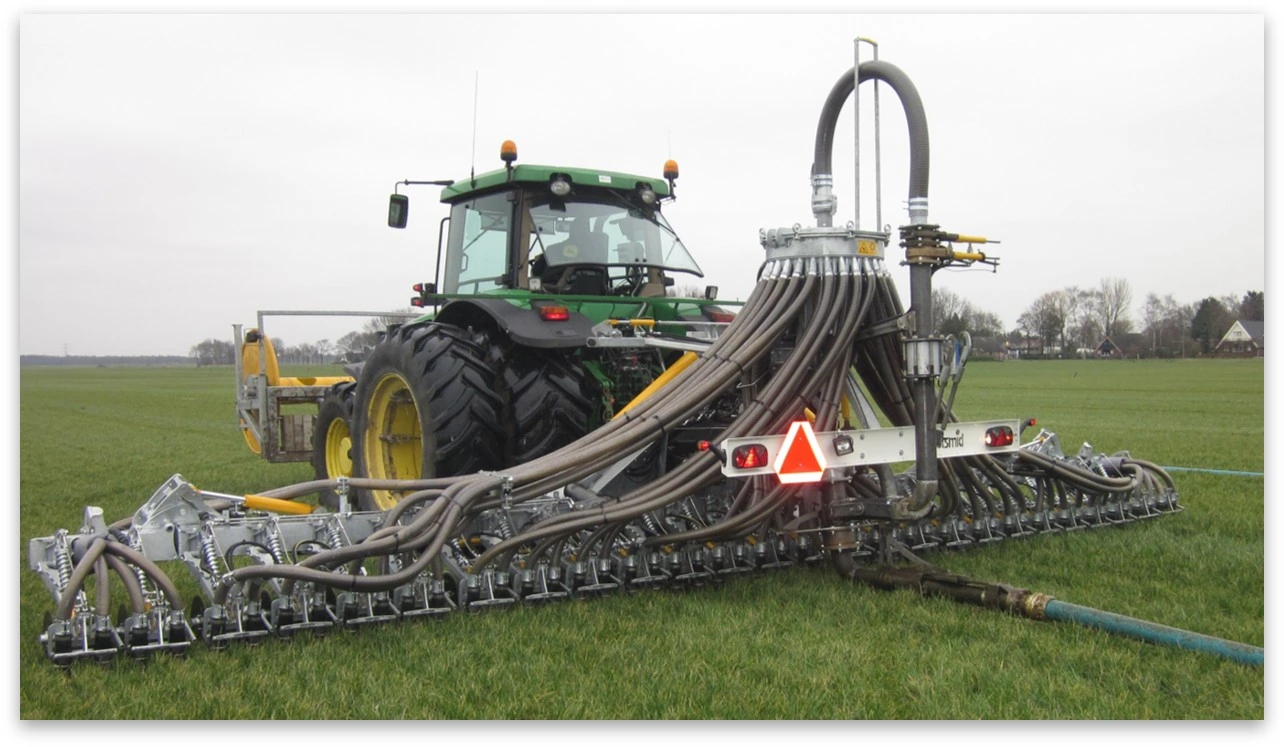

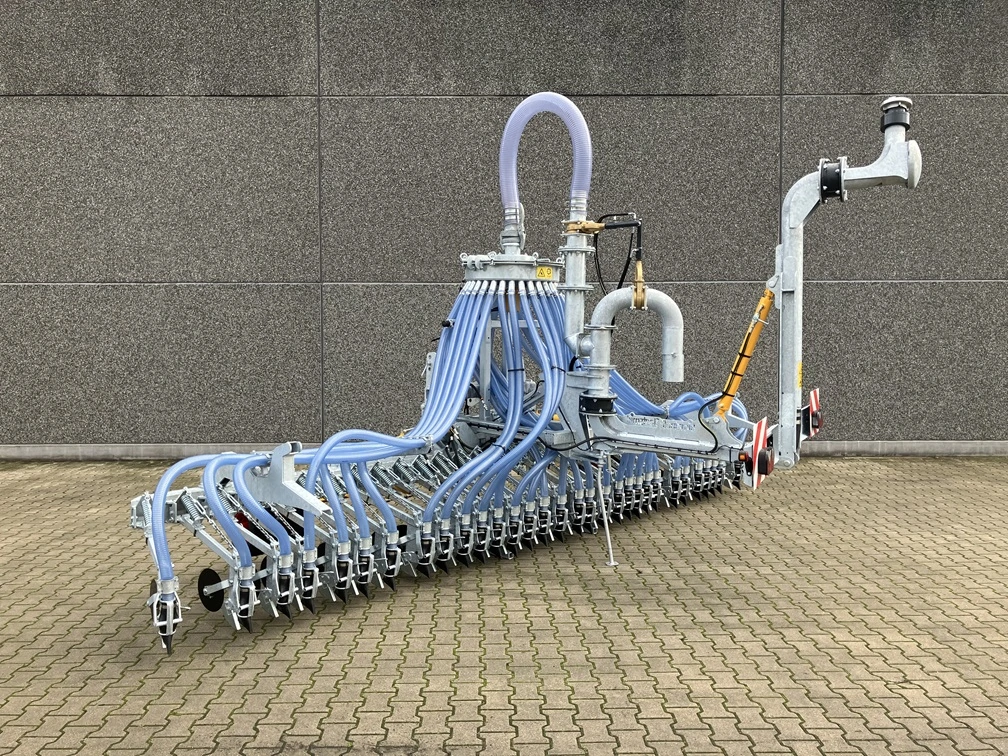

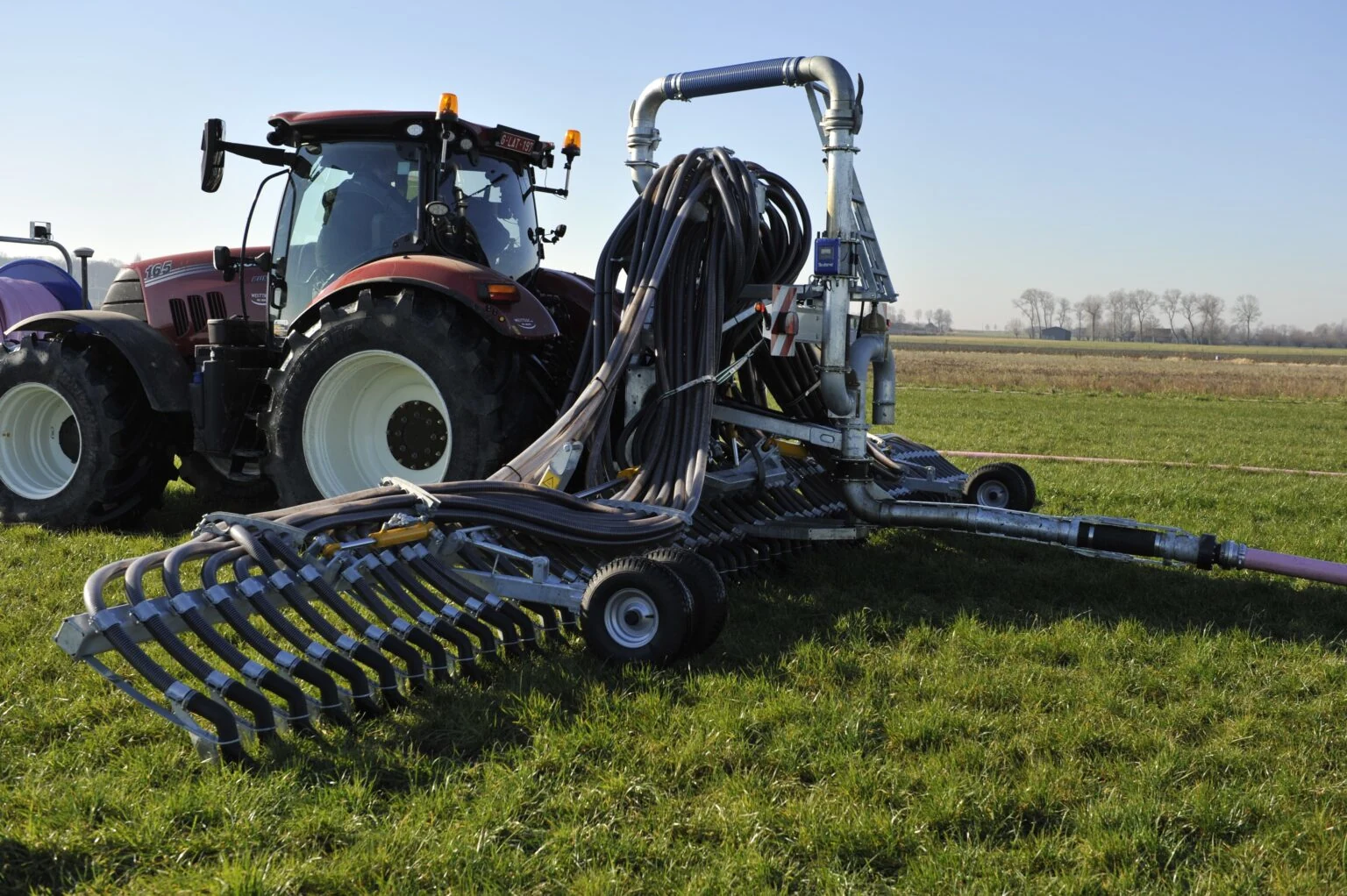

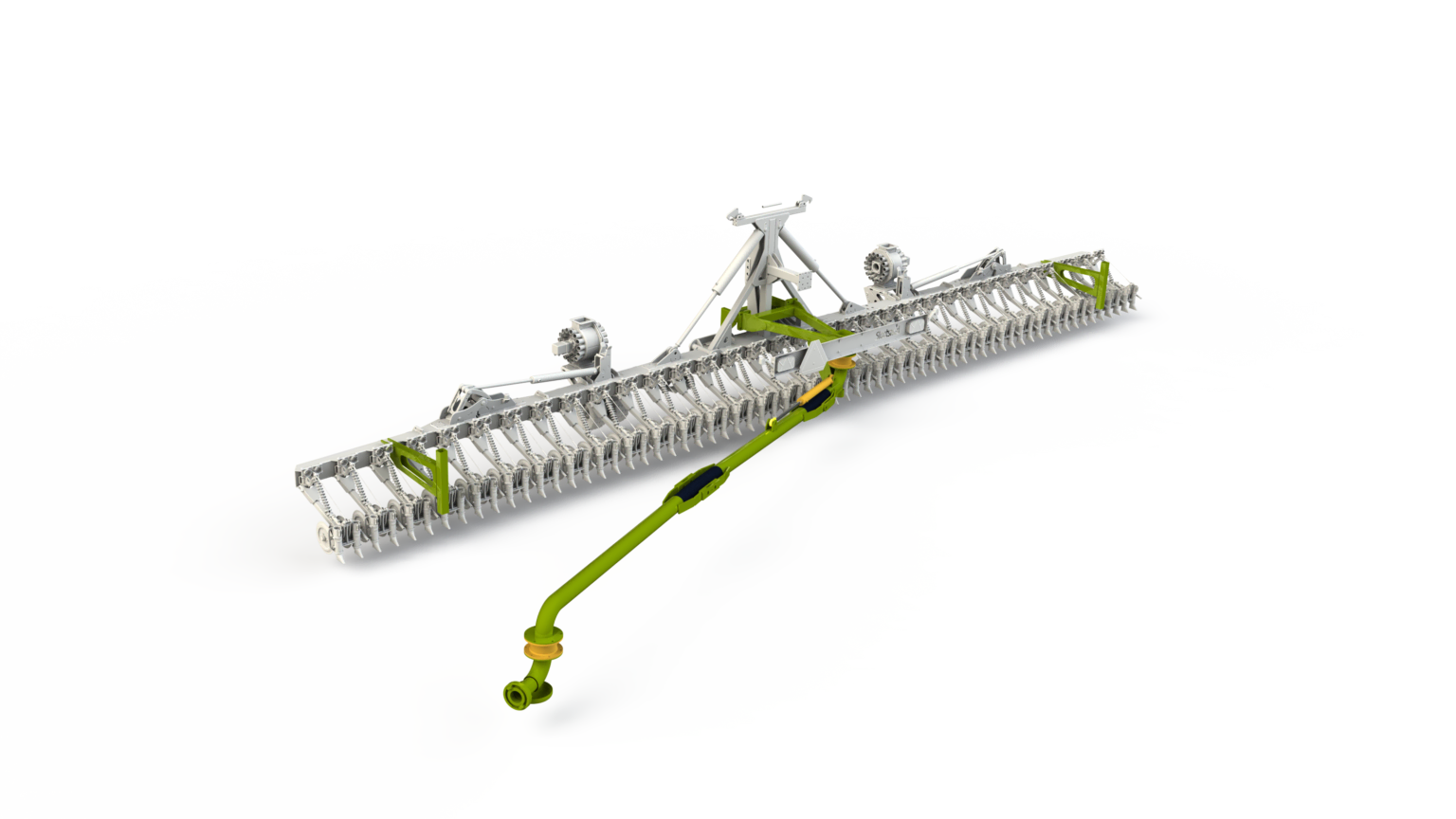

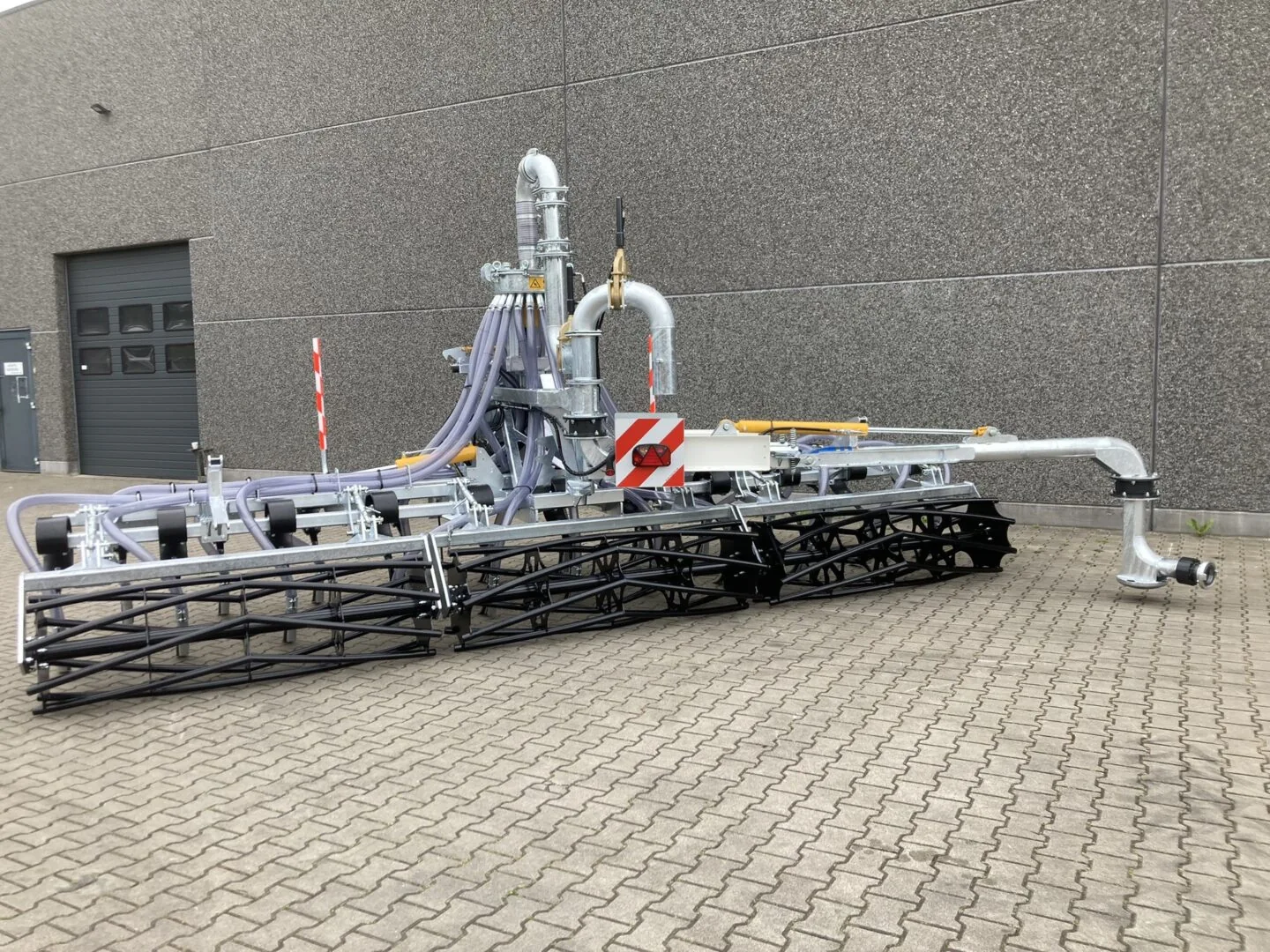

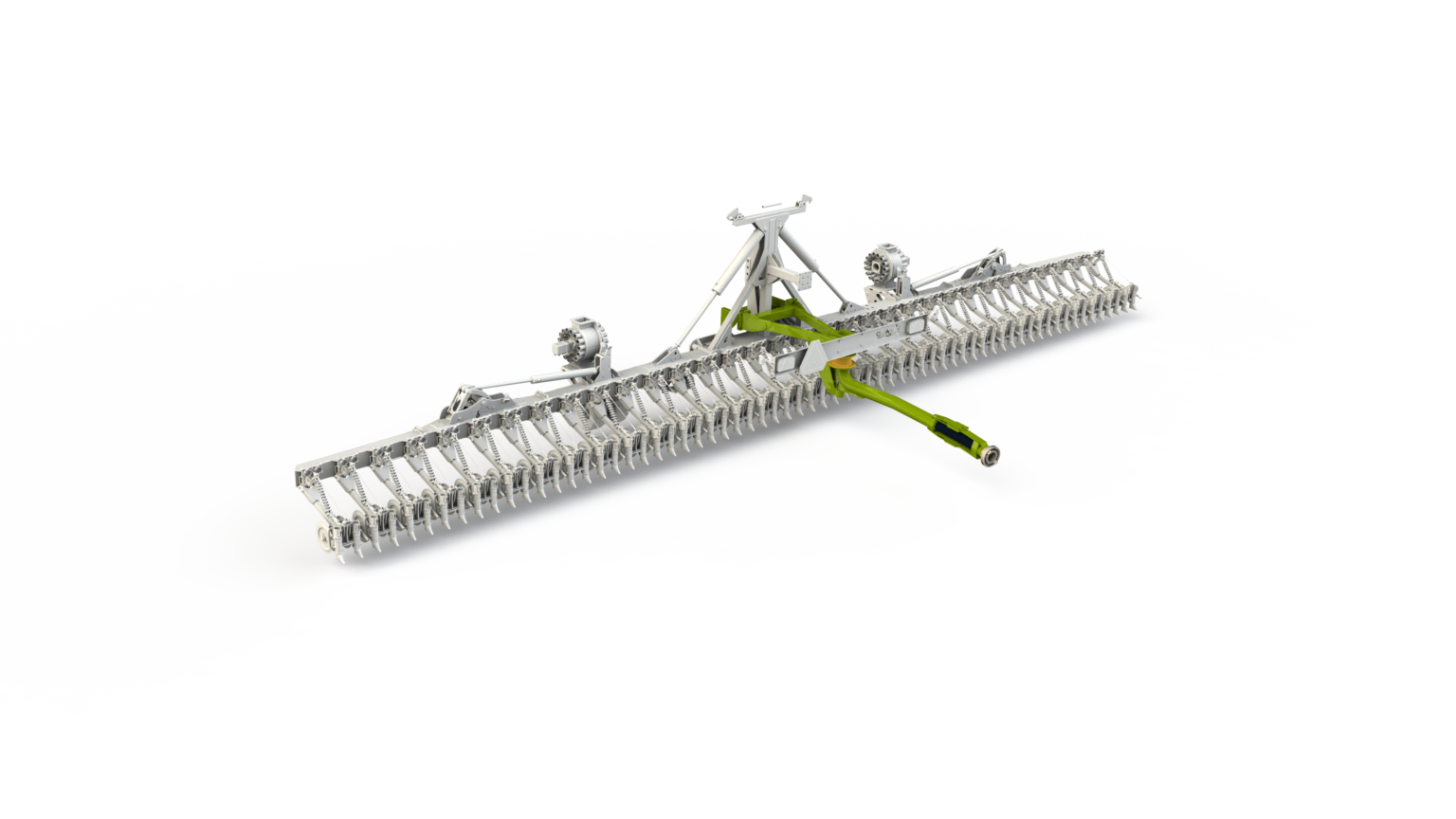

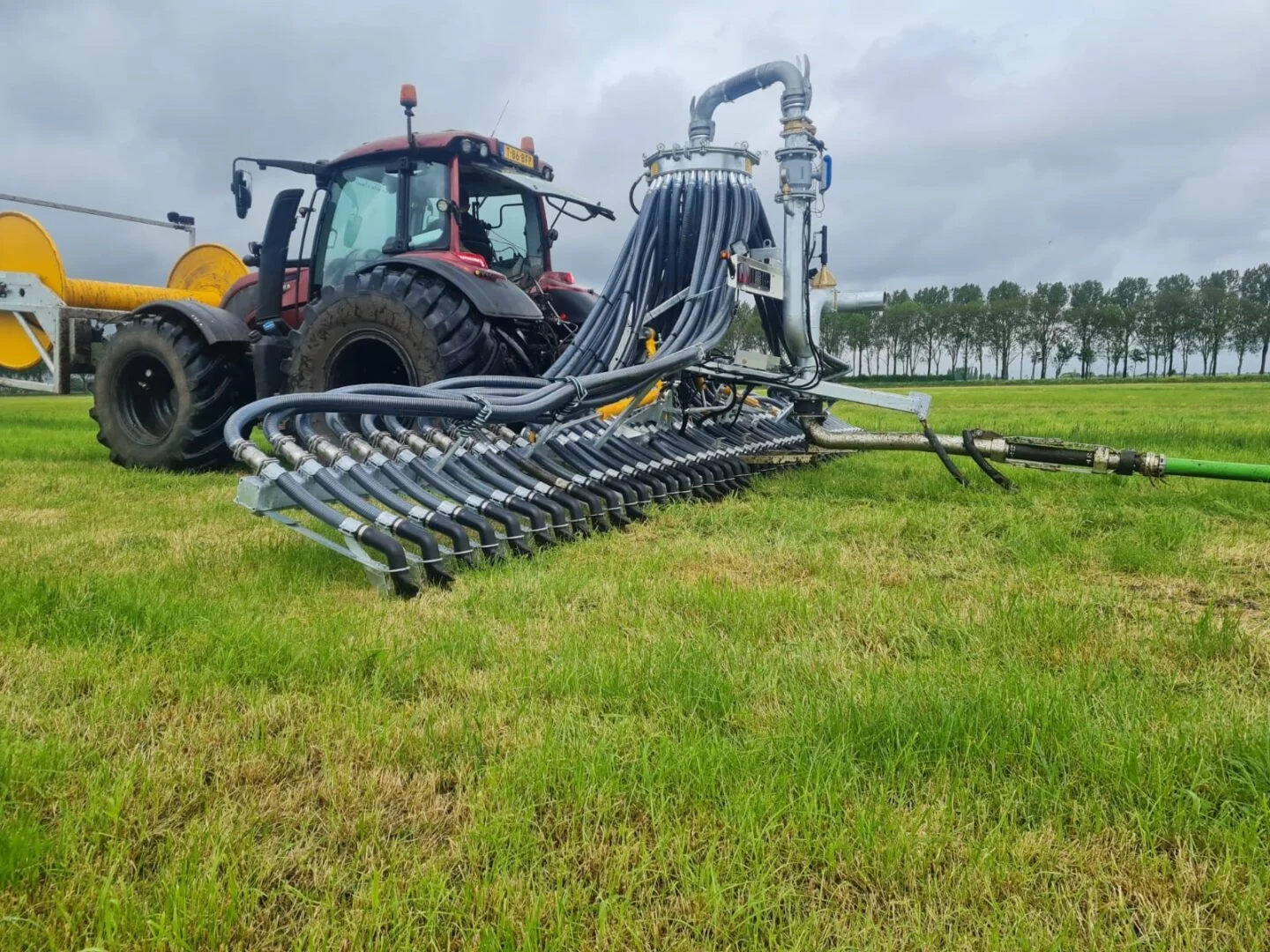

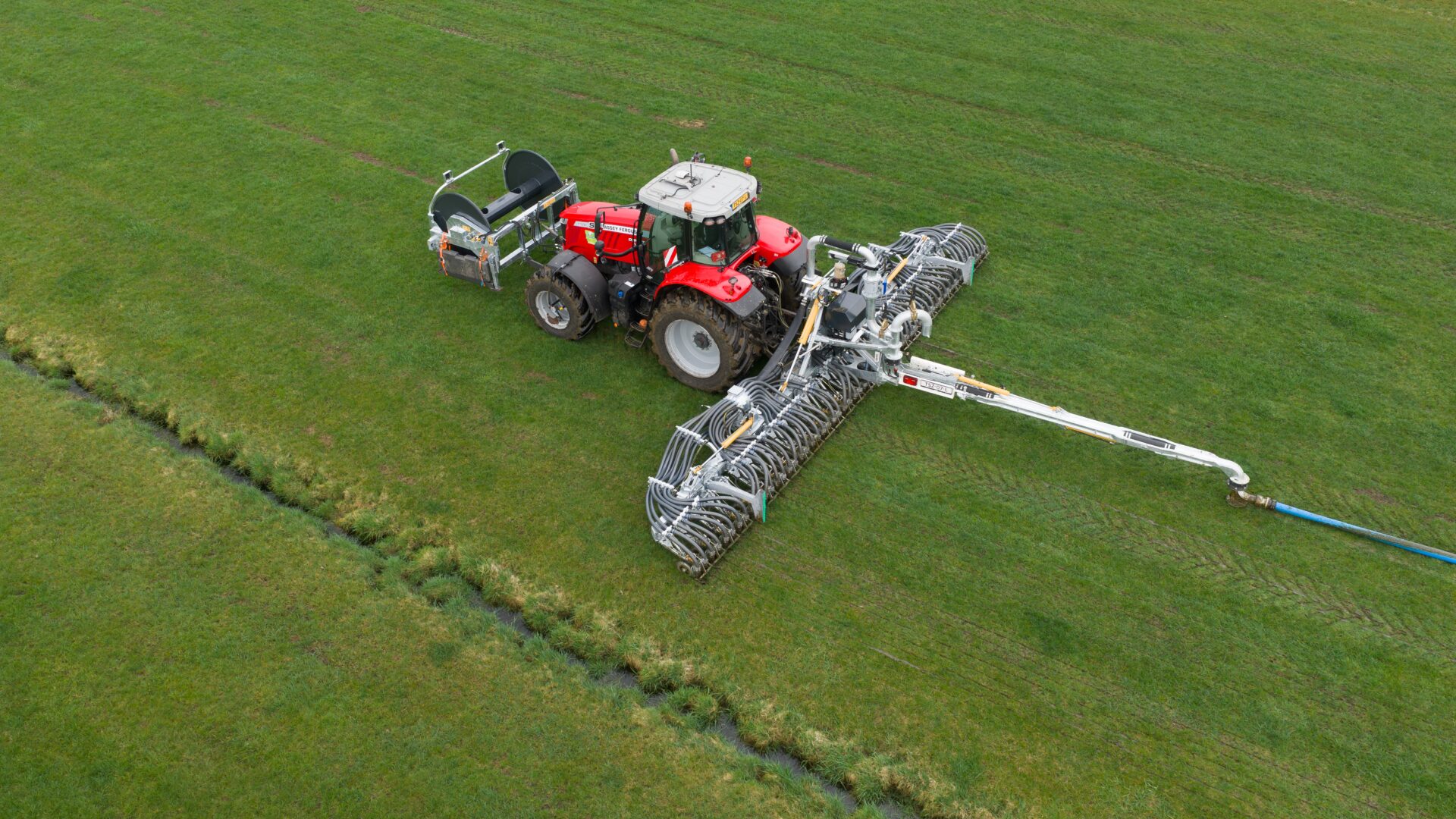

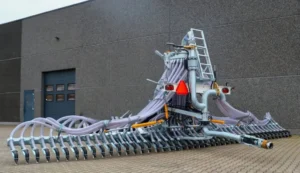

Every Slootsmid grassland or arable land injector can also be configured as a drag hose injector, with the option of a single or double drag hose boom. The drag hose boom is an integral part of the main frame, ensuring an even distribution of forces and preventing stress on the injector during operation.

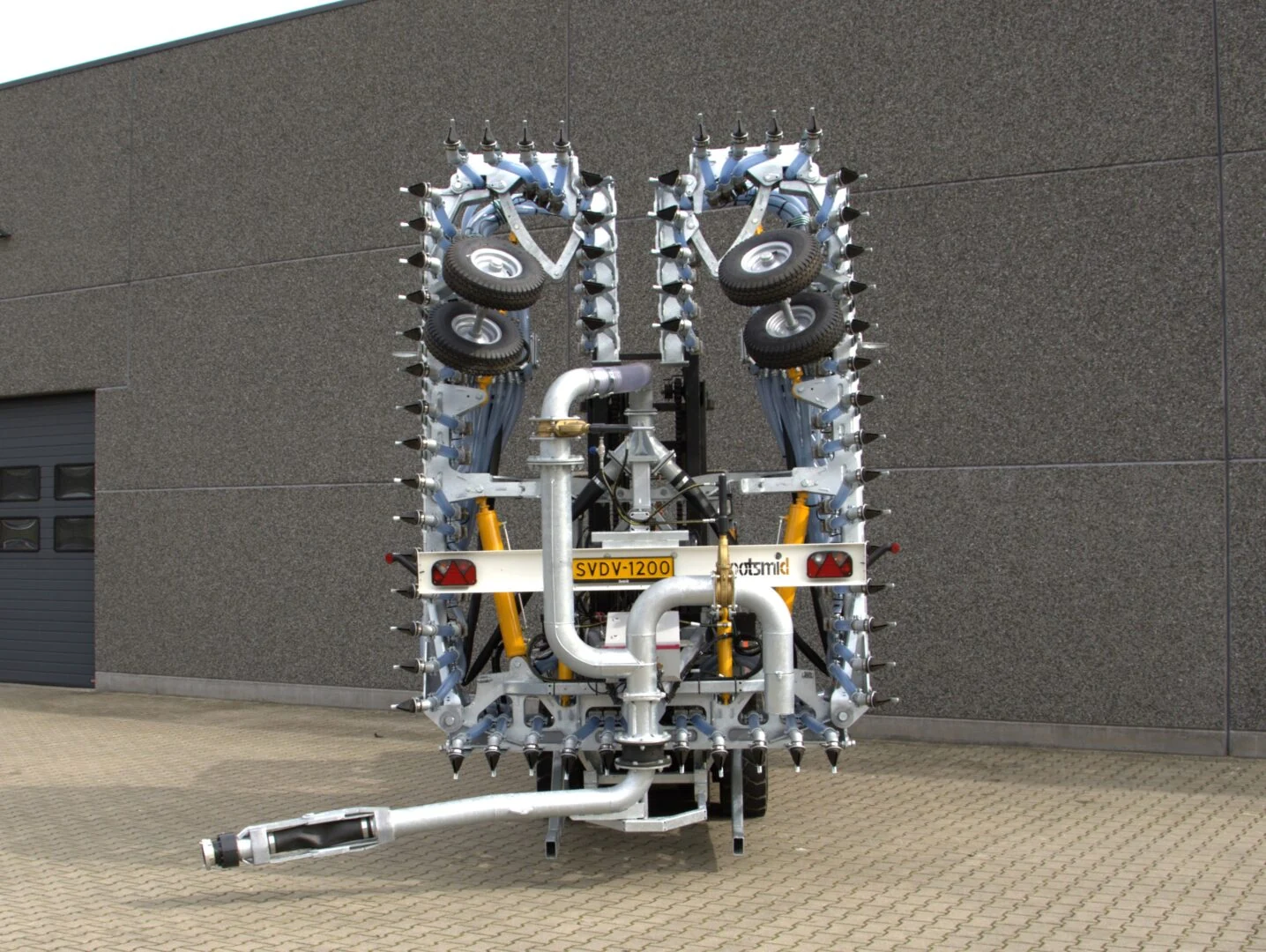

The boom offers a rotation range of 180° (SK–SZB–SGB–SB) or 255° (SV–SVDV), providing excellent maneuverability at the headlands and ensuring smooth and efficient handling in the field.

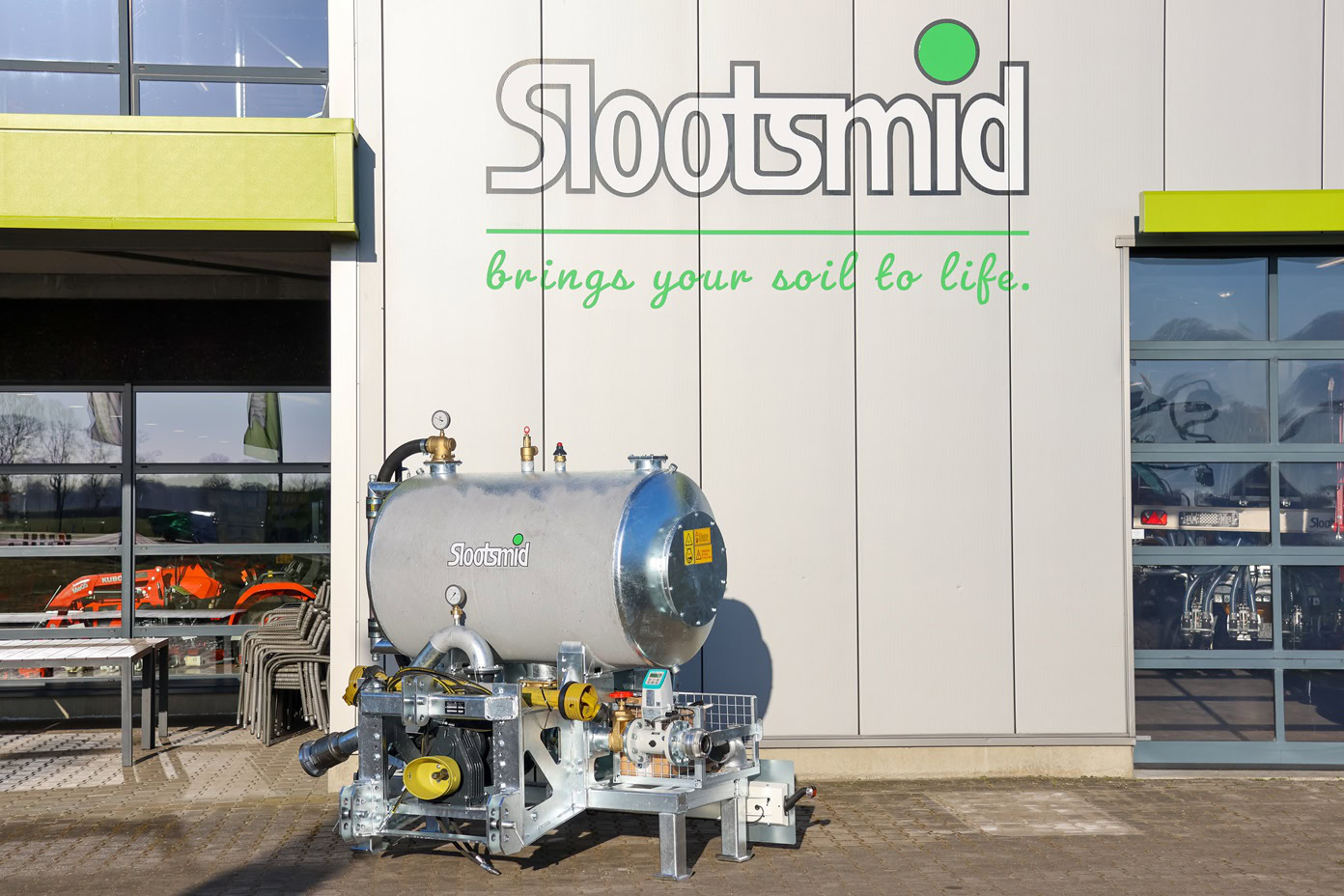

Pump Units for Drag Hose Systems
Slootsmid pump units are specially designed for drag hose slurry application systems. These units are largely custom-built to meet individual customer requirements and are available with a wide range of options and configurations.
In their simplest form, the pump units consist of a single pump mounted in the three-point linkage, but they can also be built on a fixed chassis if desired. Depending on your needs, the units can be equipped with various options such as a cutting filter, generator, platform with loading ramps for an ATV, or different types of pumps.
- Drag hose fully galvanized, except for the swivel joints
- Pipe diameter: 5”
- Swivel joint in the drag hose prevents kinking of the hose
- Pulling point of the drag hose is located at the connection point of the injector – ensuring no force is exerted on the injector itself
- Swivel joint at the coupling guarantees smooth rolling of the drag hose
- Equipped with a rinse valve
- Prepared for a flow meter
- STORZ hose coupling
- 5” KKV straight connection, mounted on top of the distributor
