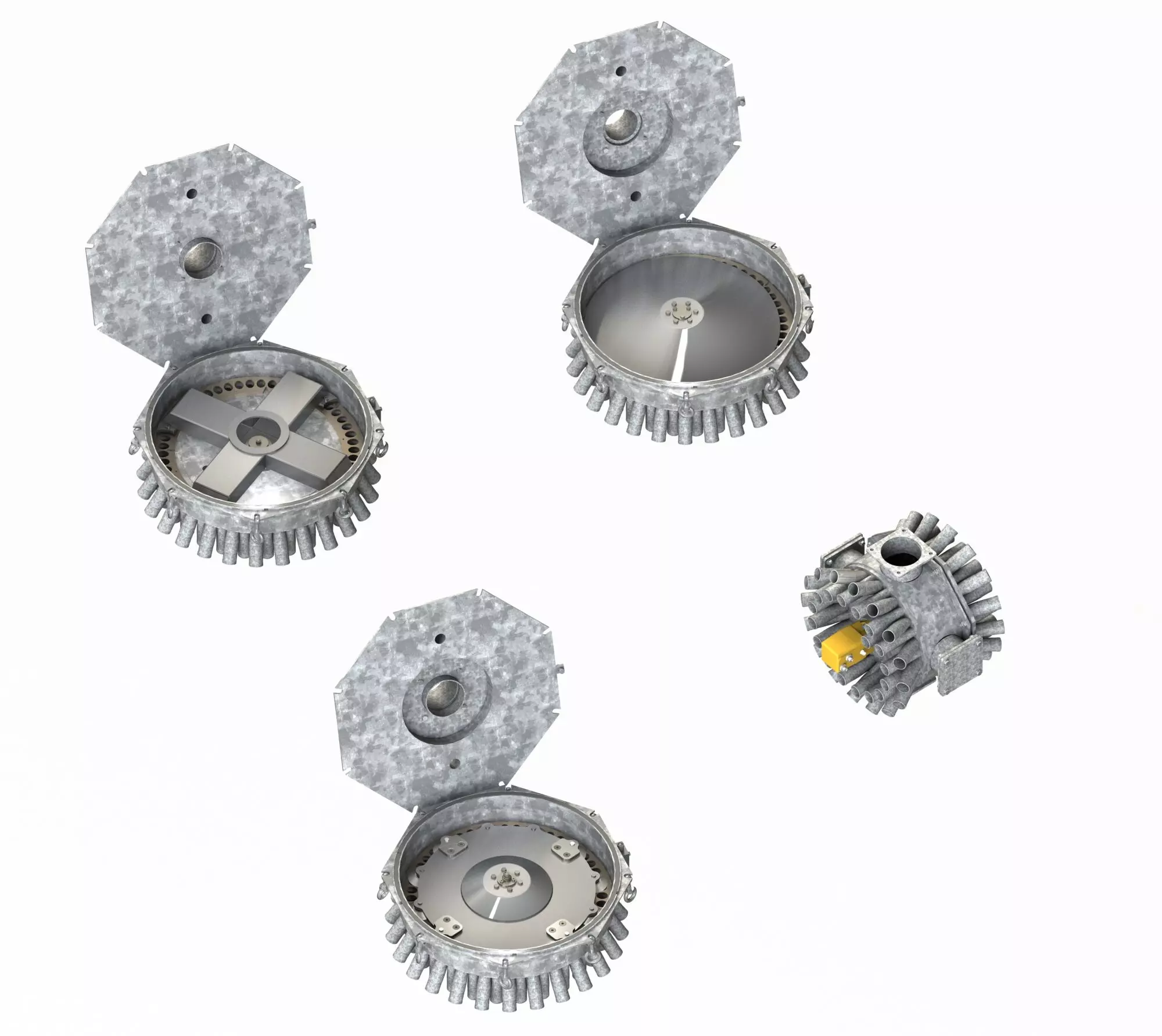

The Slootsmid distributor excels in an optimal distribution of manure across the various outlets of the distributor with minimal blockages. Slootsmid distributors are available in 5 different types, with a crossbar rotor, eccentric cutting plate, cutting knives with plate, Duo distributor with two eccentric cutting plates, or as Mini Exact distributors.

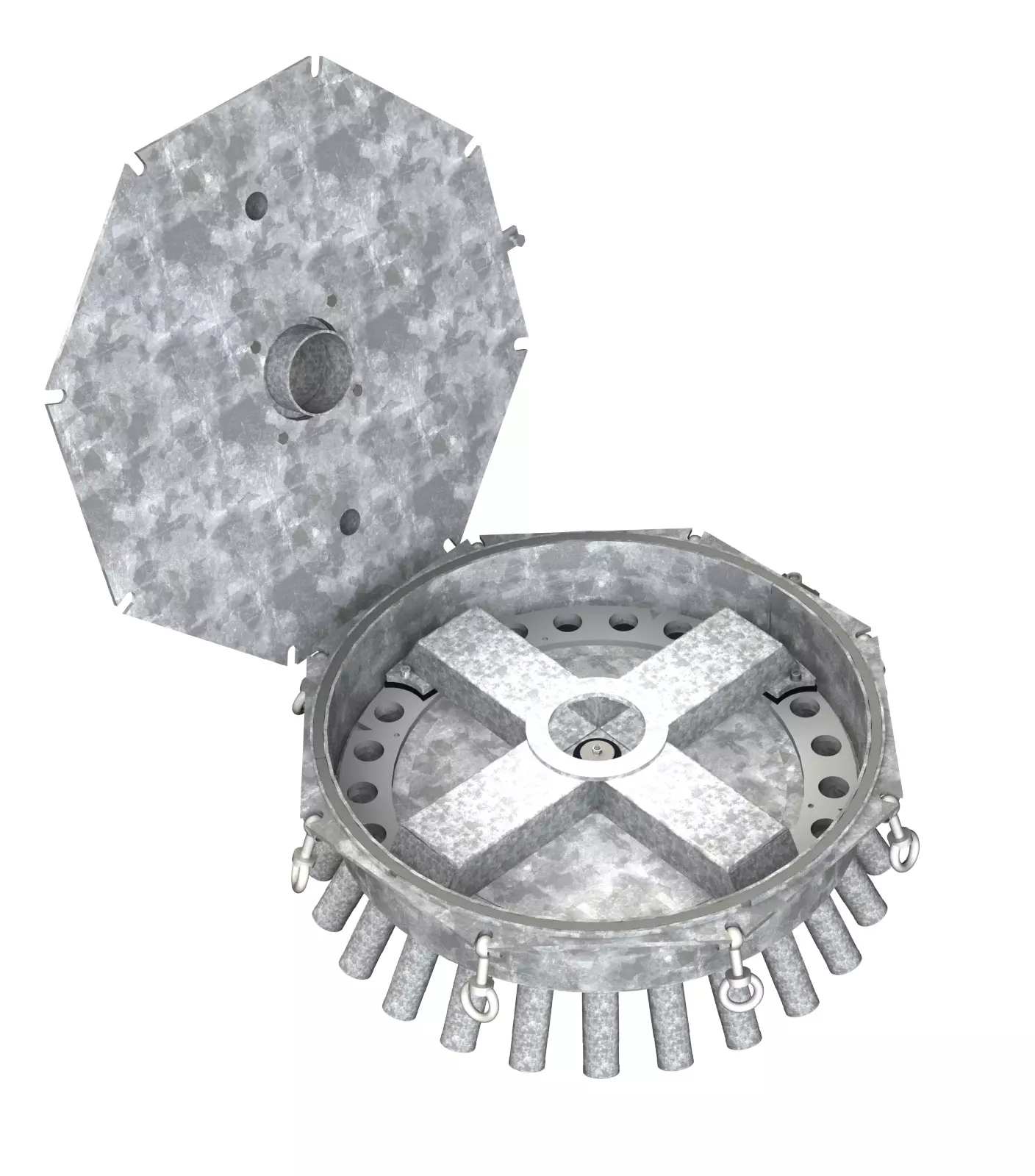

The Slootsmid 4-star crossbar rotor is available from 11 to 54 outlets. The outlets are welded in a single circle. The distributor features an interchangeable cutting ring and counter knives. Manure or debris that cannot be cut remains in place with this distributor. The outlets have an inner diameter of 51 millimeters and an inlet size of 6”.

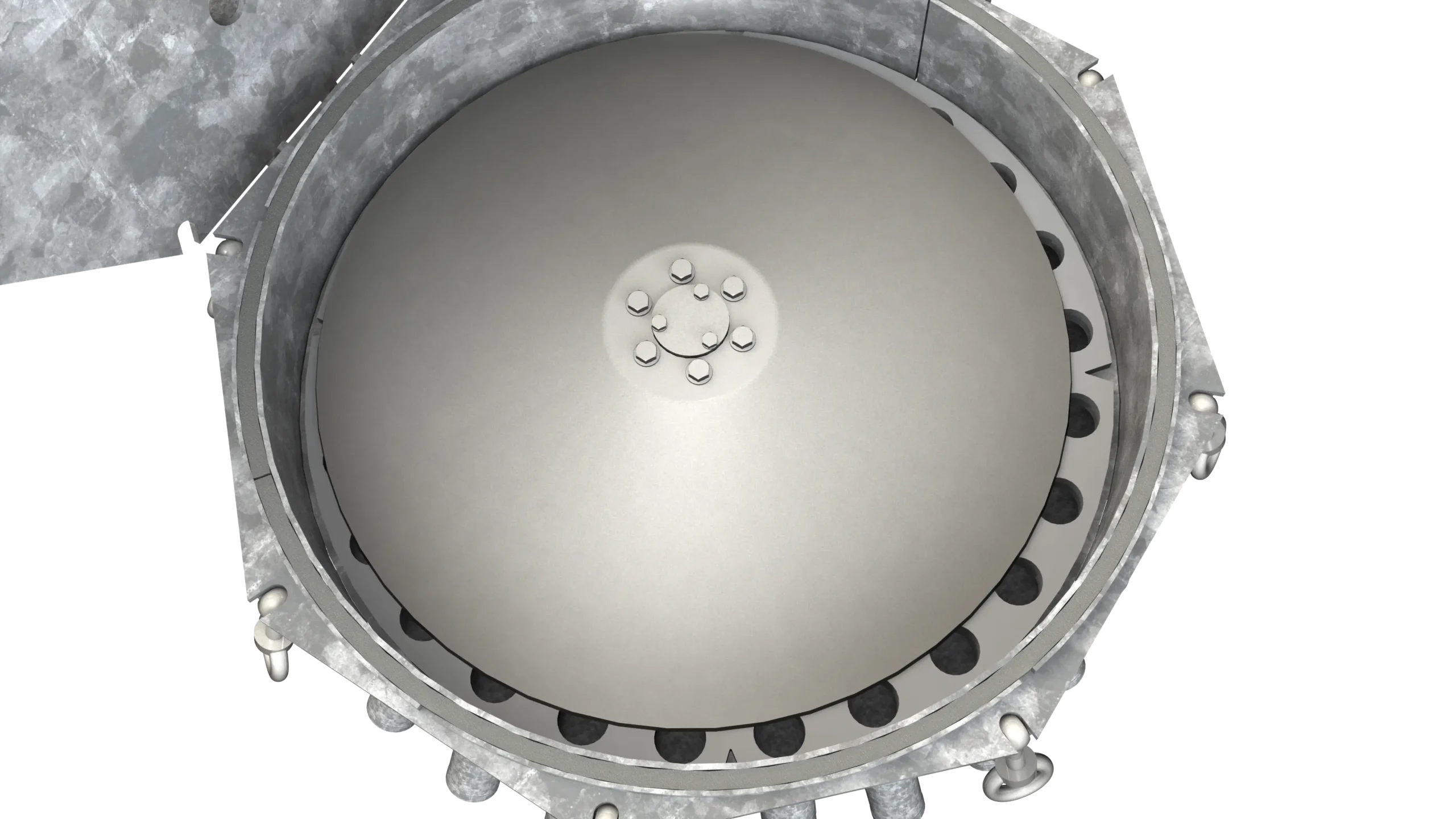

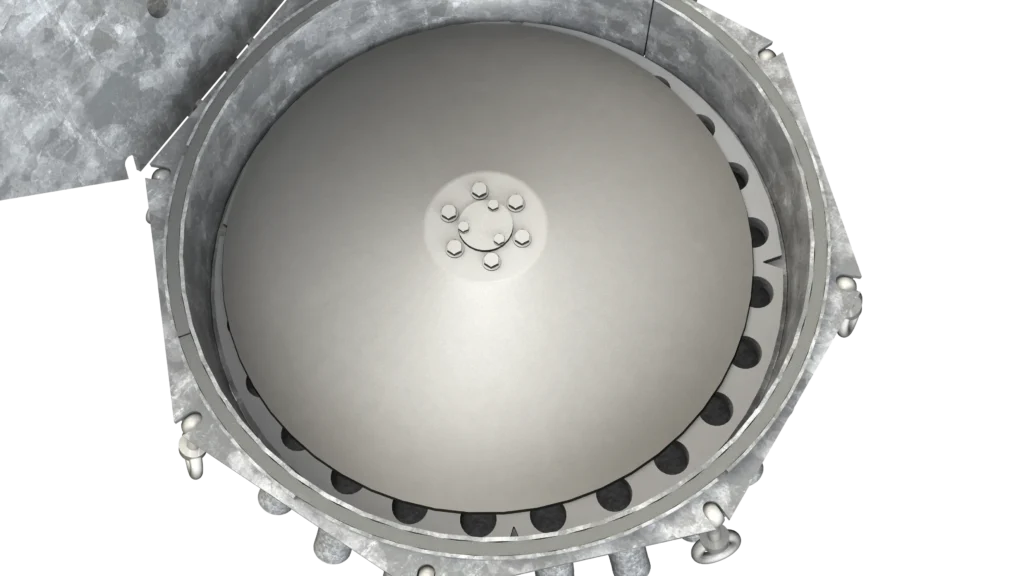

The Slootsmid eccentric distributor contains a cutting plate that rotates eccentrically on the axis and over the cutting ring. This is available from 11 to 54 outlets, welded in a single circle. Equipped with interchangeable cutting ring and cutting plate. The outlets have an inner diameter of 51 millimeters and an inlet size of 6”.

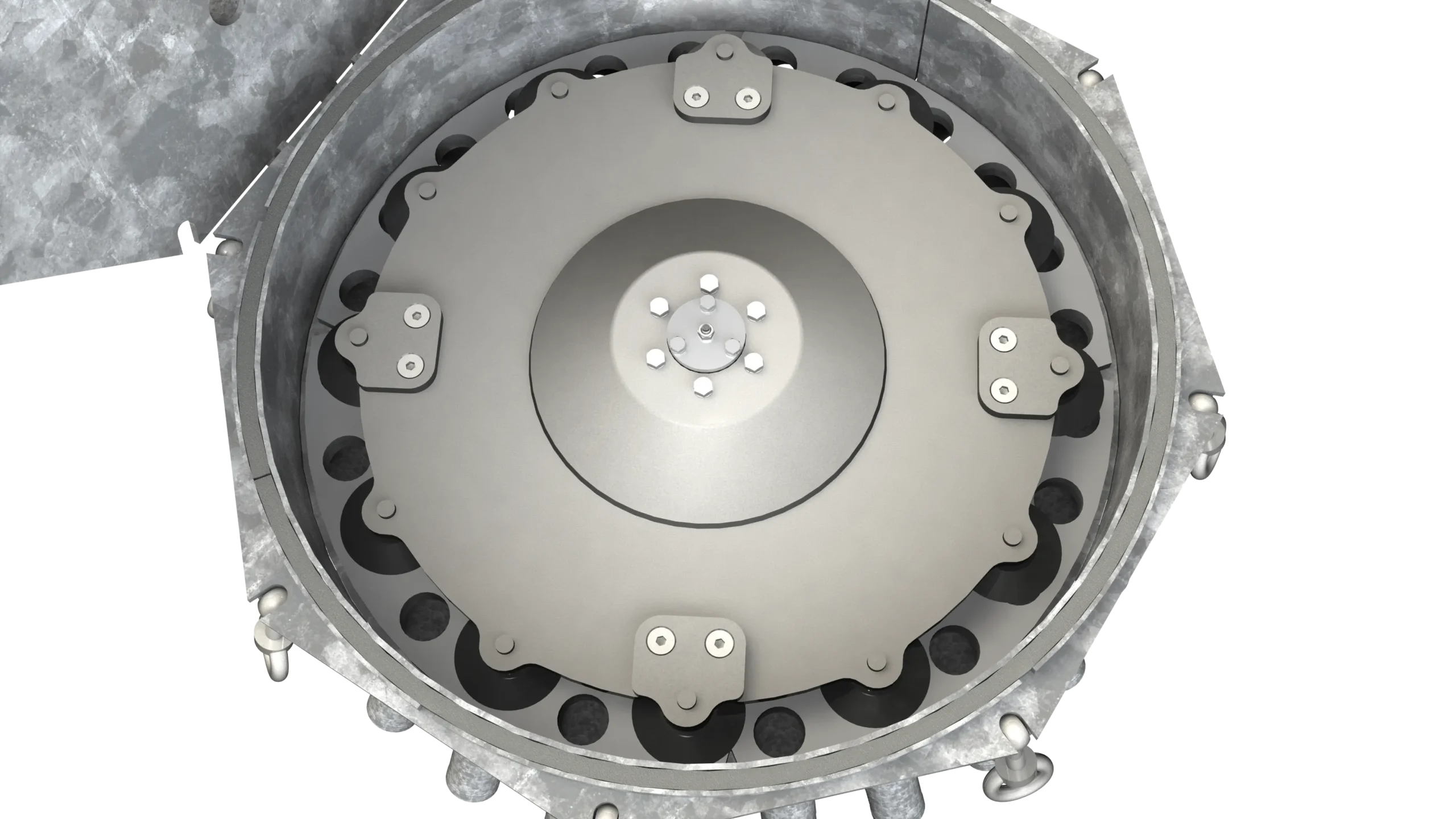

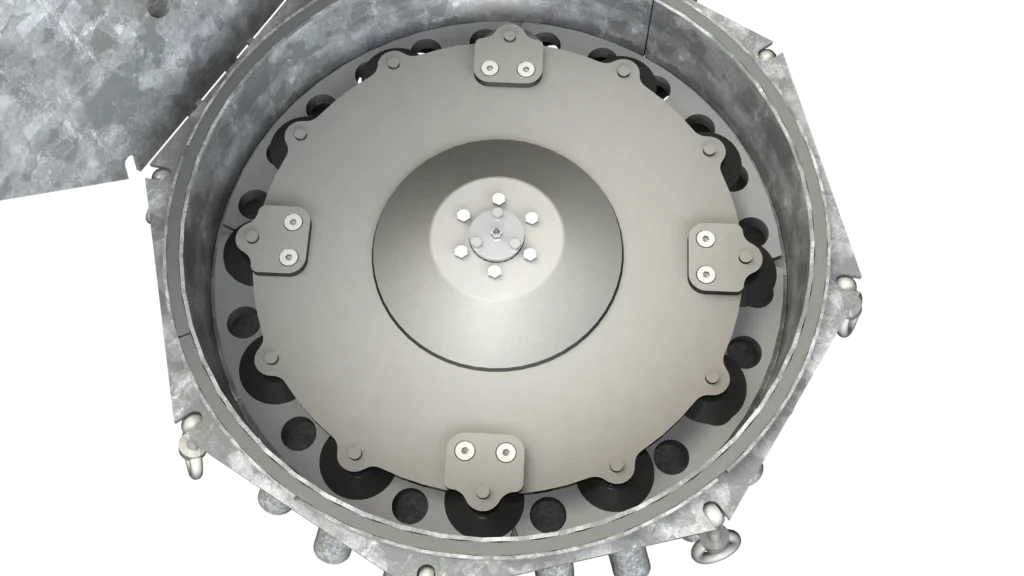

The Slootsmid cutting distributor plate is equipped with 8 or a maximum of 12 cutting knives. It is available from 11 to 54 outlets, welded in a single circle. Equipped with interchangeable cutting knives and plate. The outlets have an inner diameter of 51 millimeters and an inlet size of 6”.

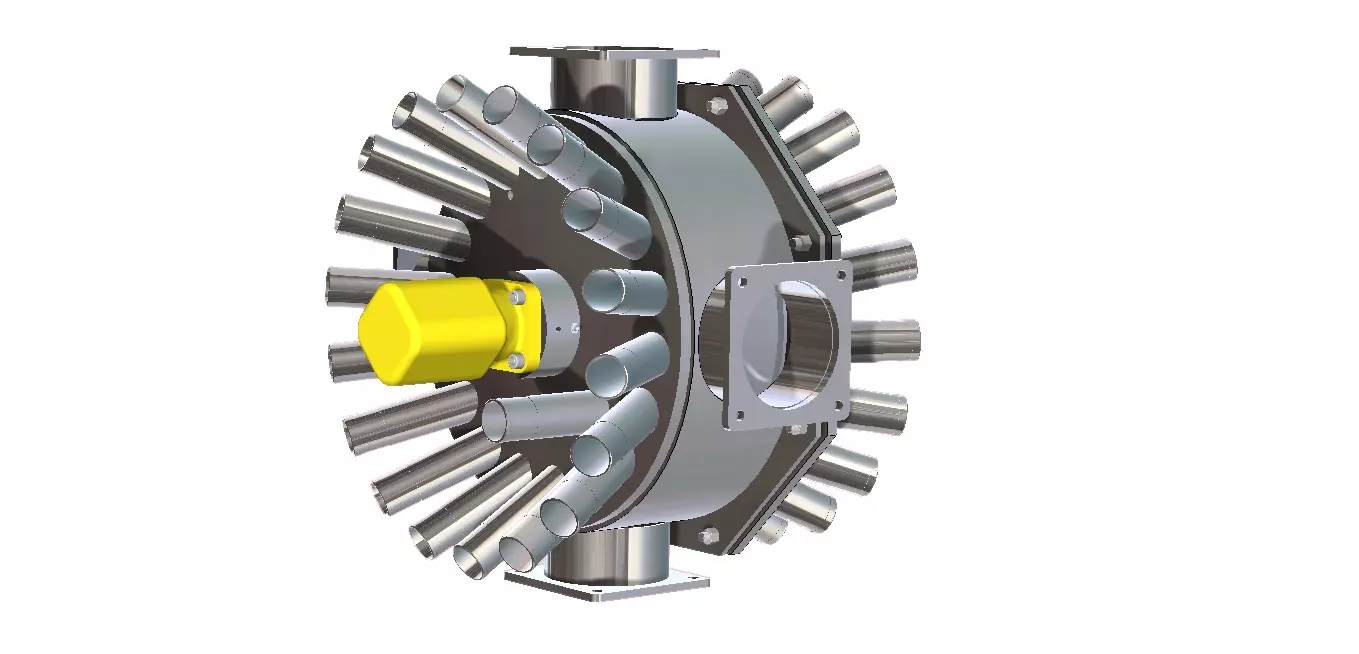

The Duo distributor is vertically positioned with a double eccentric cutting plate. Interchangeable cutting rings and cutting plates. It is available from 32 to 60 outlets welded in a single circle. The outlets have an inner diameter of 51 millimeters. It features 4 pieces of 6” inlets. The bottom inlet can be used for mounting and collecting large particles in the manure.
The Slootsmid Mini Exact distributor is a very small cutting duo distributor. With its 100mm large cutting knives, almost all crop residues
are cut into pieces. The knives are centered against the Sijring by means of a spring tension, ensuring the preload.
Thanks to its compact construction, the Mini Exact distributor is suitable for mounting on multiple machines. It is standard equipped with
51mm manure outlets and optionally with 40mm. The distributor can be fed with manure in three places: center-bottom, center-top, and
through the heart of the distributor.
The Mini Exact is available with 20 to 34 outlets, with a standard connection size of 4 inches.
