*Regarding maximum capacity. The actual capacity is highly dependent on the product being separated, the consistency of the input, and the sieve opening size.
Stationary Manure Separators

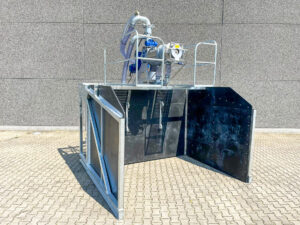

Slootsmid can custom install the FAN separator at any desired location. A common choice is installation on silo walls, allowing the thick fraction to fall freely downwards. This setup also provides ample and solid storage for the thick fraction. In other common setups, the separator is mounted on a custom-built platform in the barn or in a steel frame with pallet forks, making it easy to move. All manure separators come standard with a control cabinet equipped with an automatic starter, thermal protection, an adjustable timer, hour counter, and dry-run protection on the pump. Thanks to these safety features, the manure separator can operate safely unattended.

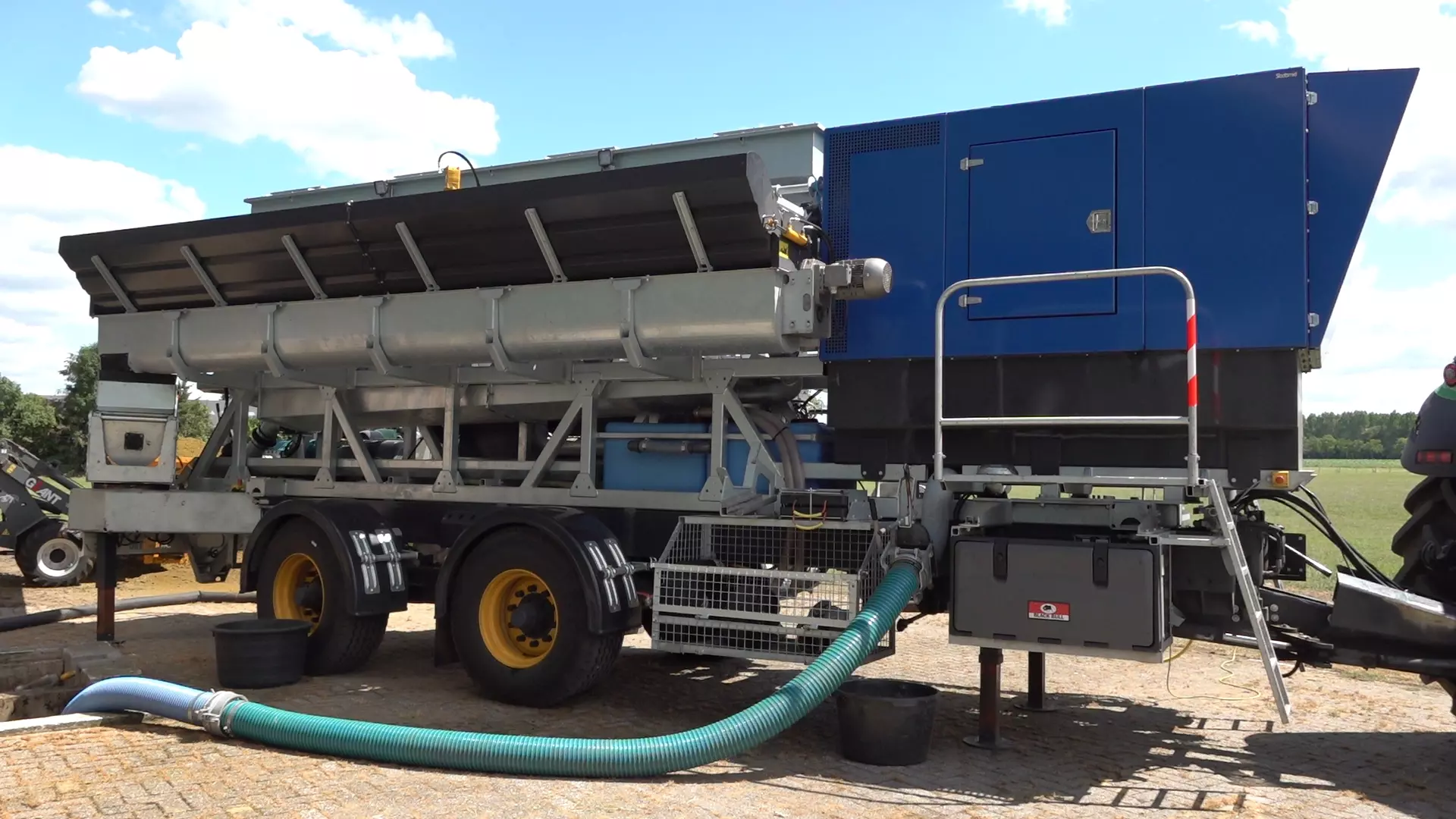

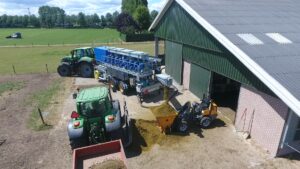

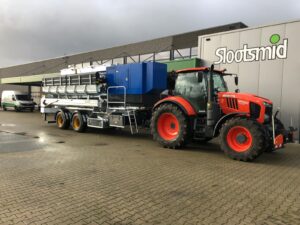

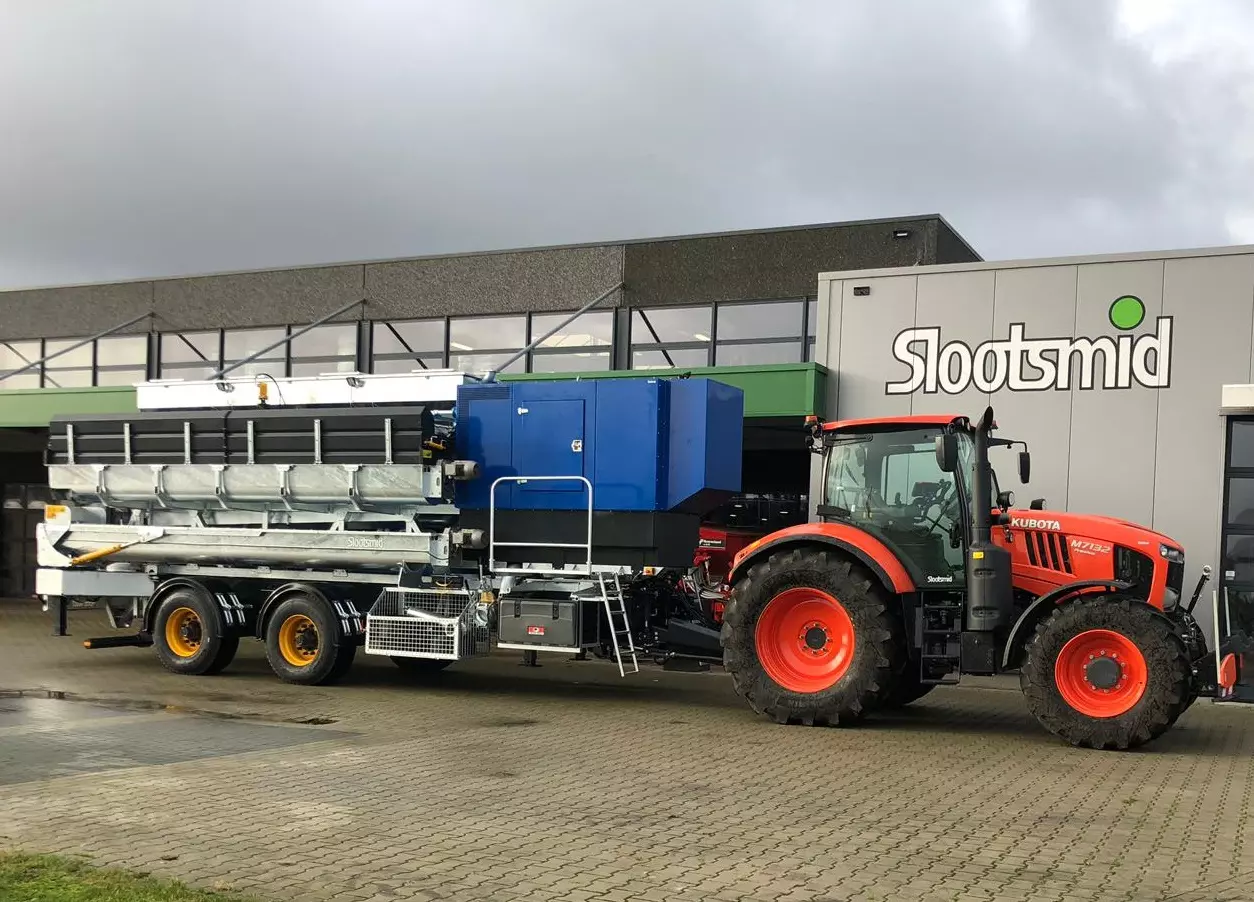

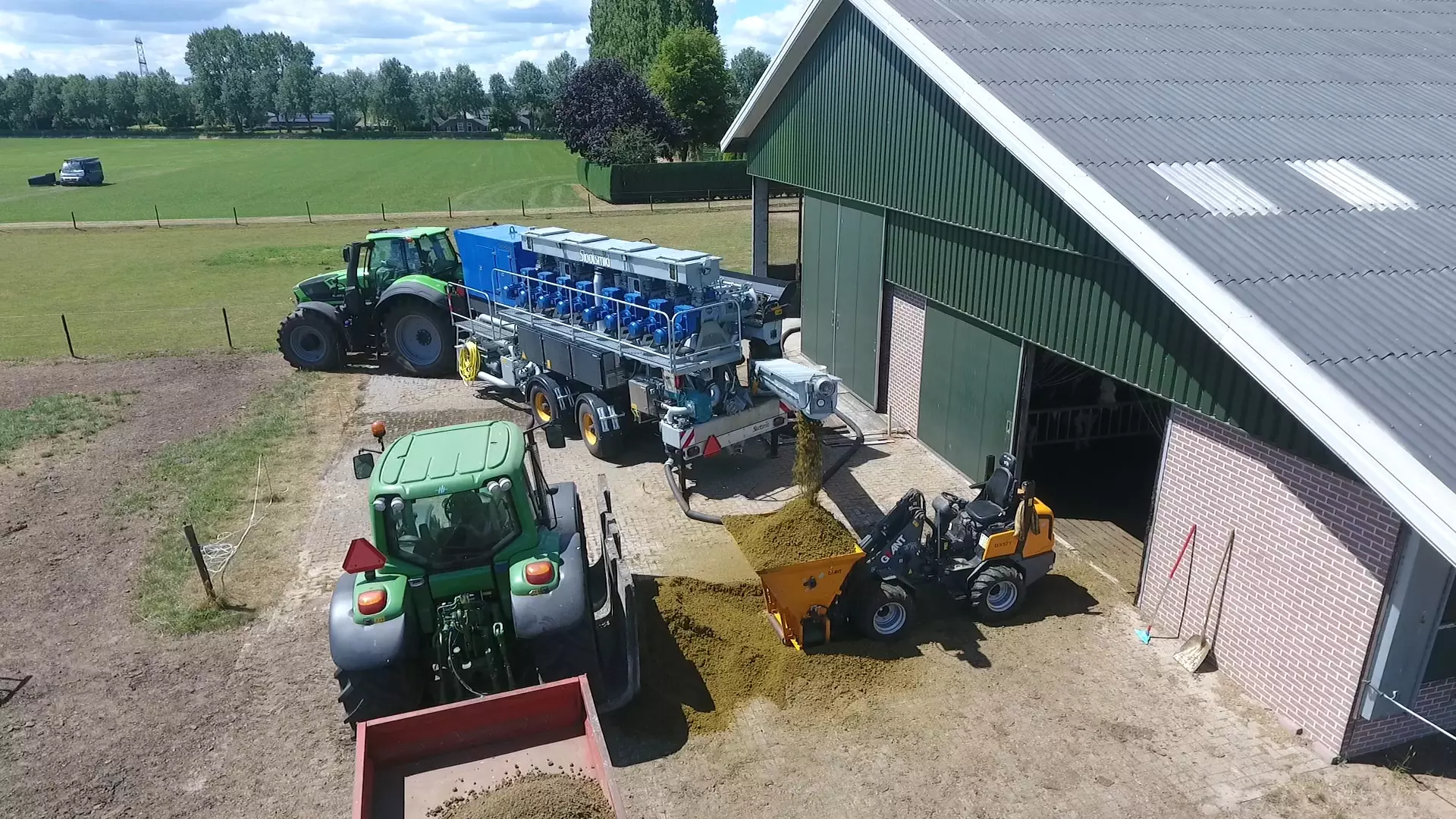

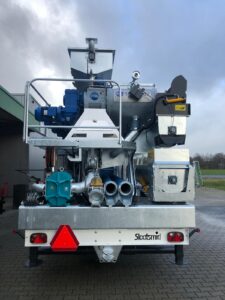

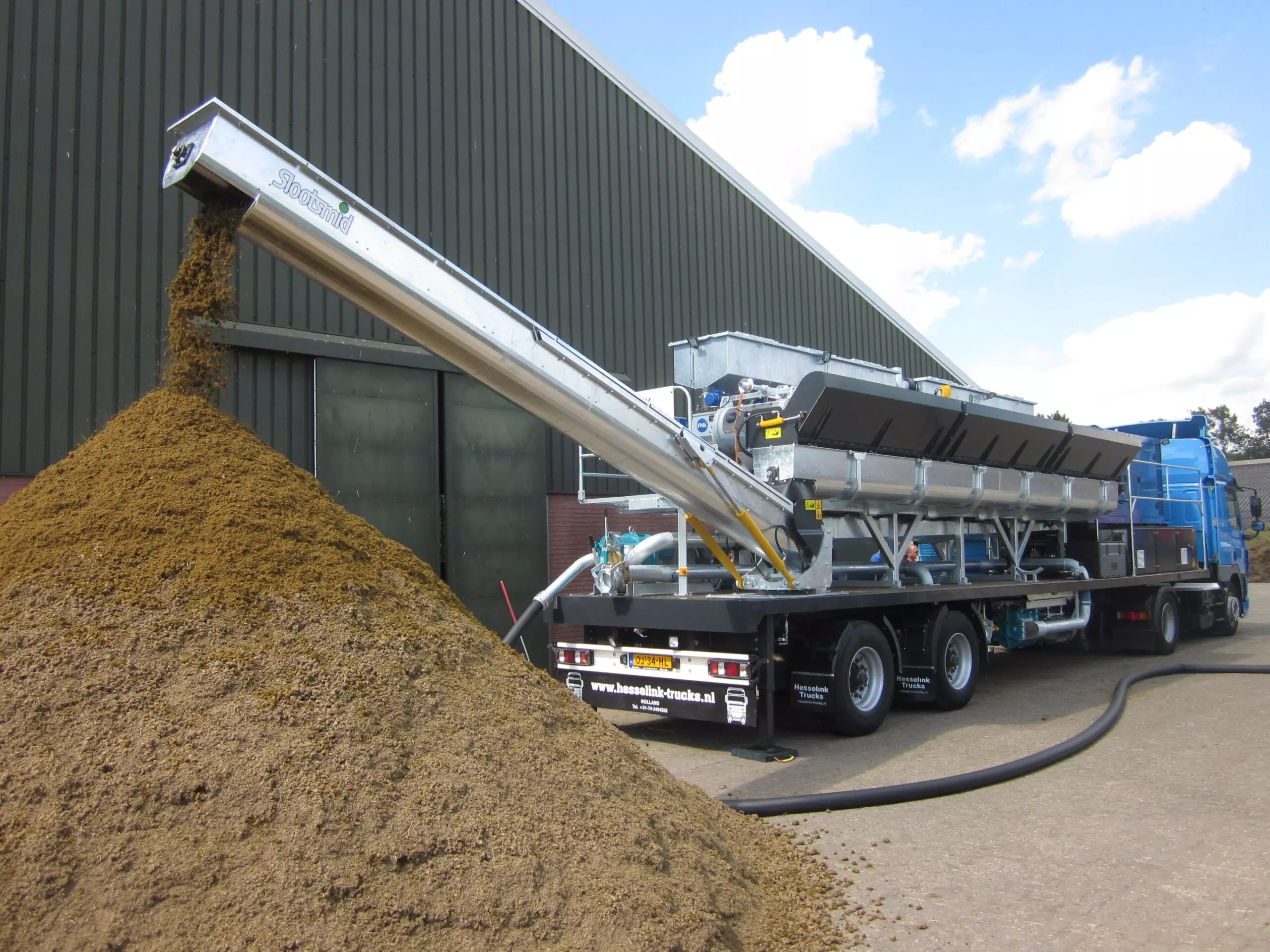

Mobile Manure Separators
These systems are characterized by high capacity combined with the ability to separate manure at various locations. The system consists of a chassis equipped with both an inlet and outlet pump for slurry, and optionally a Slootsmid cutting filter. Depending on the desired capacity, the manure separator can be equipped with 1 to 12 screw press separators. Additionally, the construction is designed to include a discharge auger with enough capacity and range to fill trucks. A generator for independent operation, a control cabinet for pump and auger operation, and control systems complete the installation. These setups can be customized entirely to your preferences; feel free to contact us for more information.
References
Below are some references for recently produced manure separators. For decanter-based manure separators, click here.

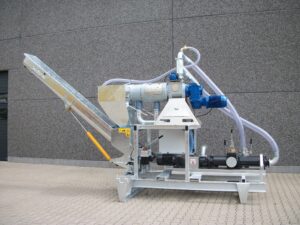

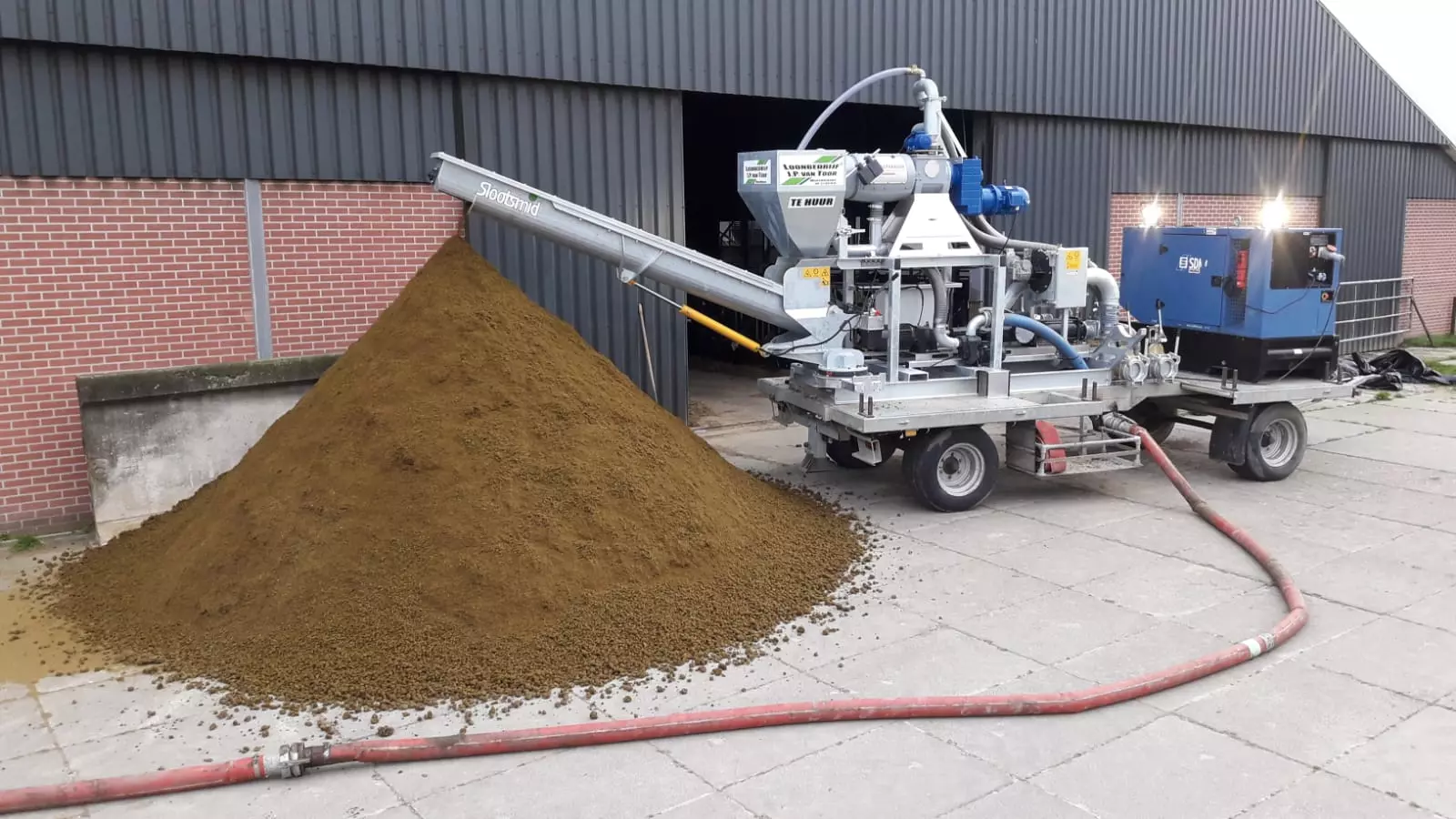

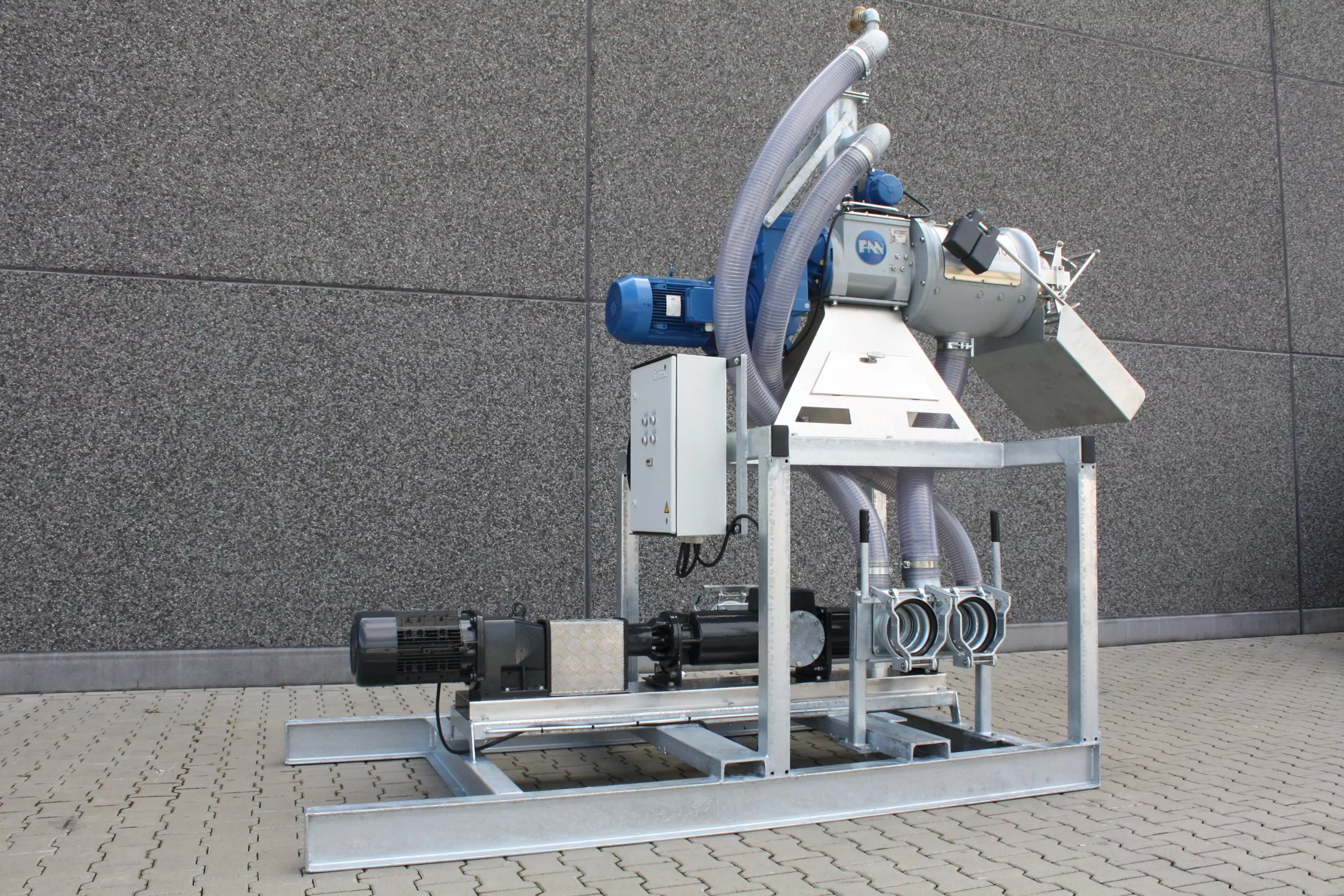

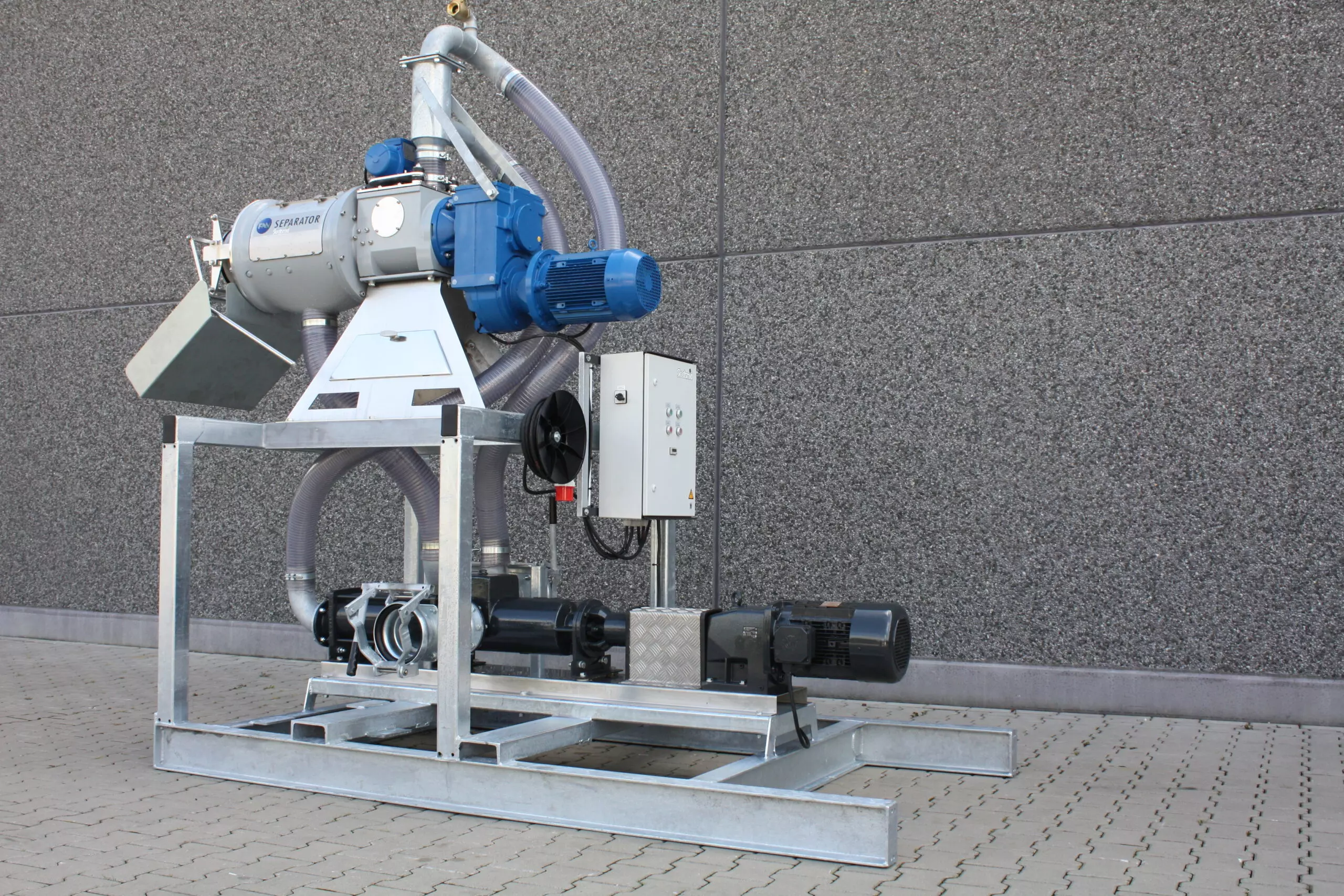

Plug & Play Systems
- Easy to move
- Self-priming screw pump
- Independent control cabinet
- Optional 2.5-meter discharge auger

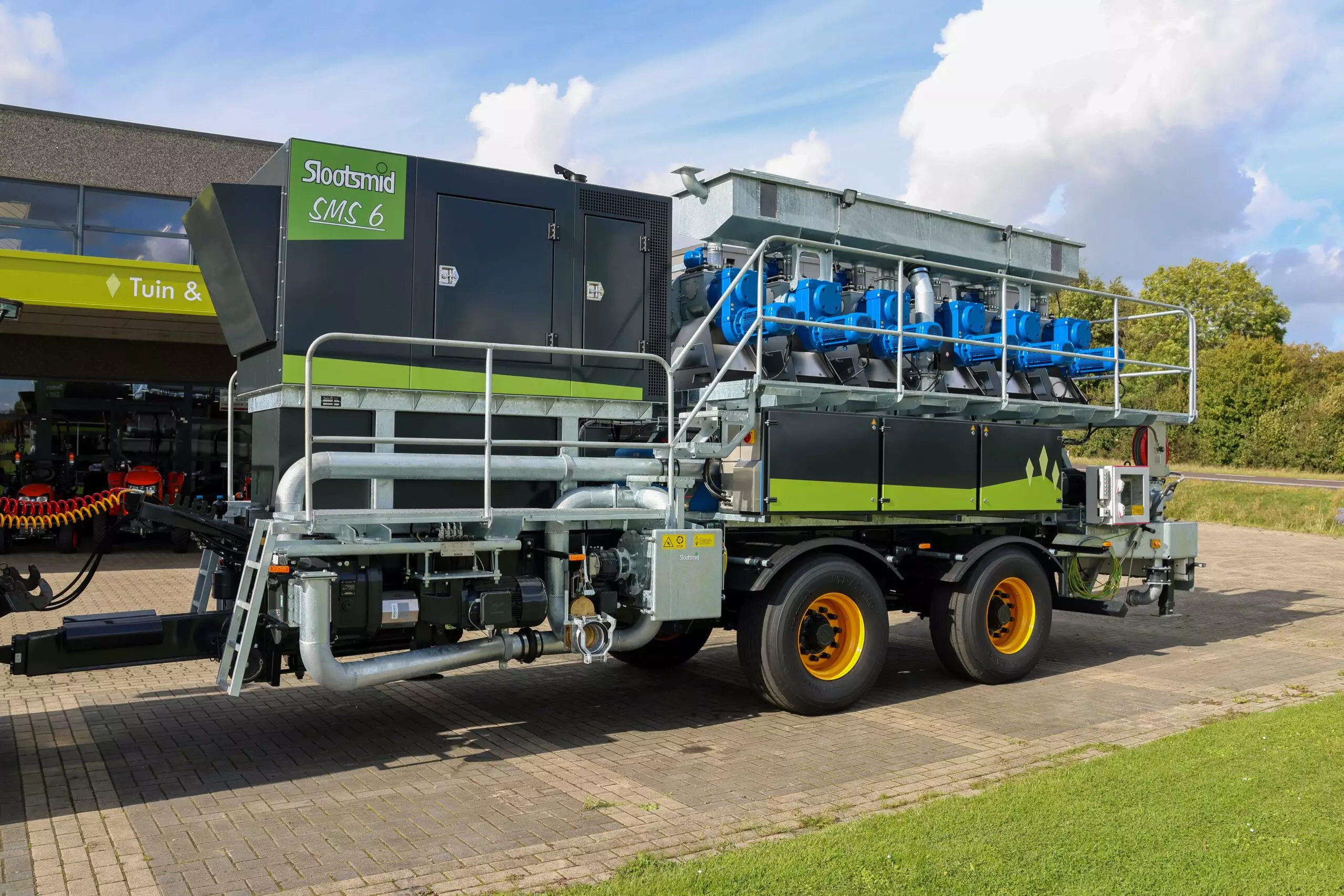

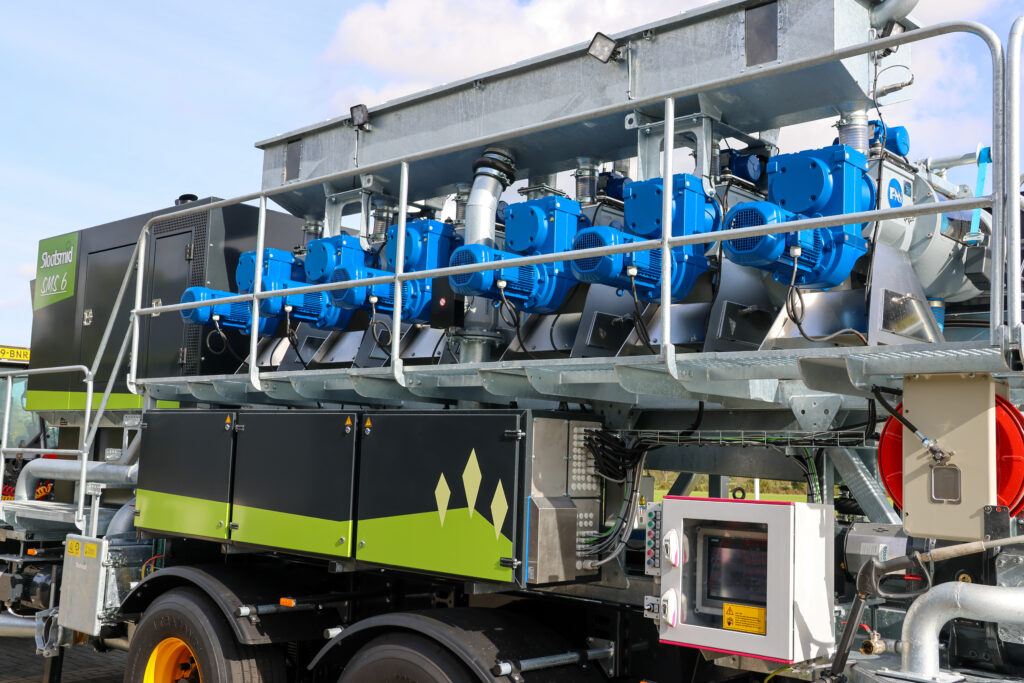

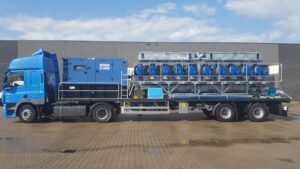

SMS6

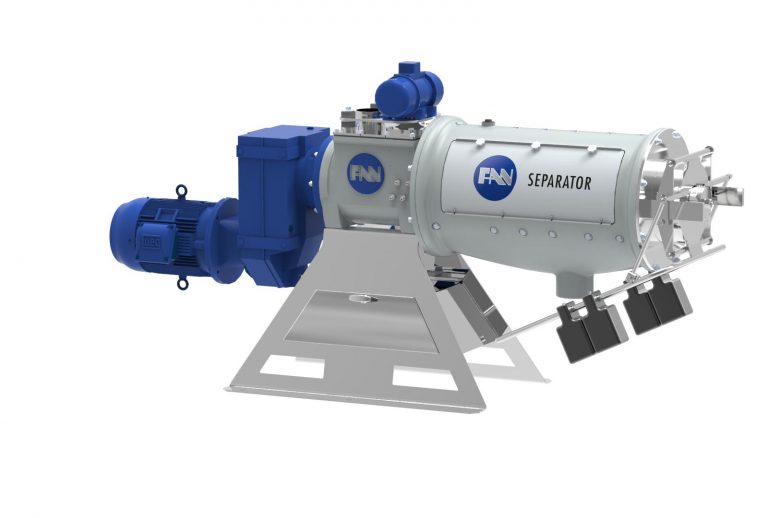

- 6 FAN 3.2-780 separators with oscillator units
- 6-meter discharge auger for the solid fraction
- 165 kVA generator
- 300-liter clean water tank
- Borger inlet and outlet pump
- Slootsmid SF8 cutting filter
- Controlled trailer with twist-lock system

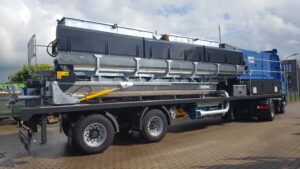

SMS8
- 8 FAN 3.2-780 separators with oscillators
- 6-meter discharge auger for the solid fraction, 180-degree rotatable
- 200 kVA generator
- 600-liter clean water tank
- Borger inlet and outlet pump
- Slootsmid SF8 cutting filter
- Controlled trailer with twist-lock system

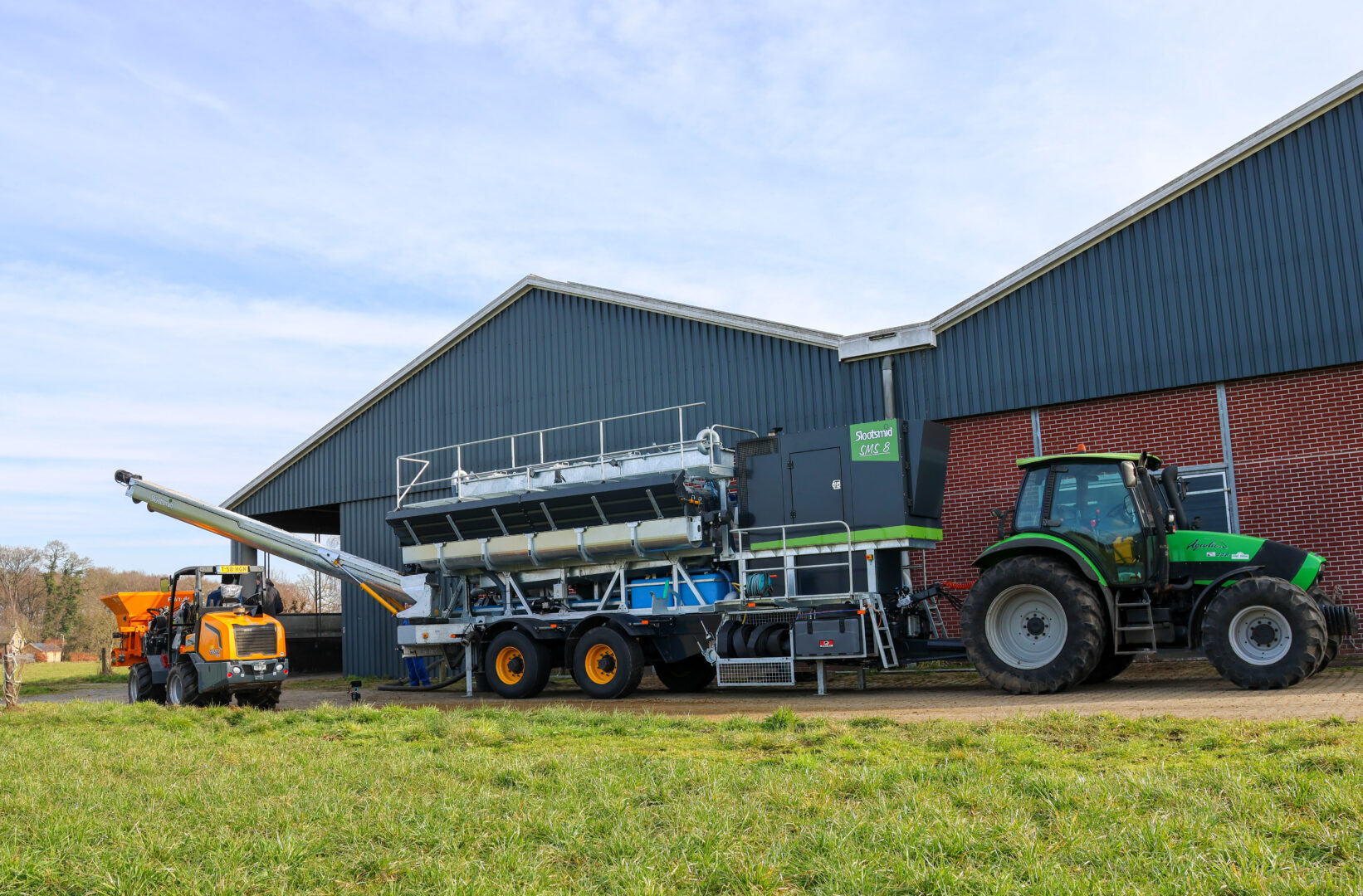

SMS10
- 10 FAN 3.2-780 separators with oscillators
- 6-meter discharge auger for the solid fraction, 180-degree rotatable
- 200 kVA generator
- 300-liter clean water tank
- Borger inlet and outlet pump
- Slootsmid SF8 cutting filter
- Mounted on a 13.6ft trailer
